Cod. 11270

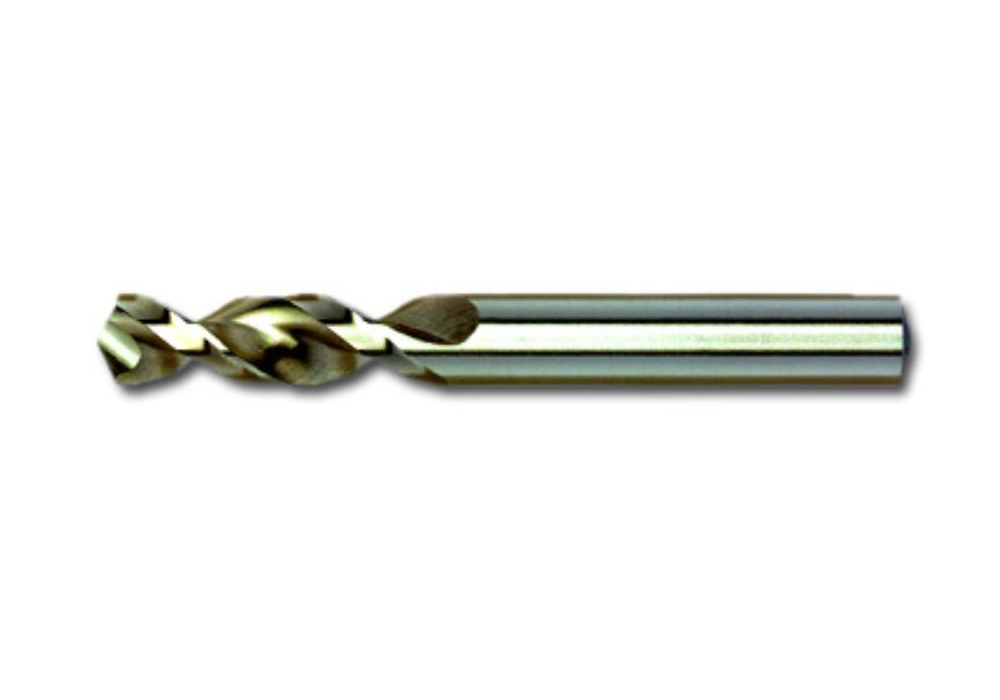

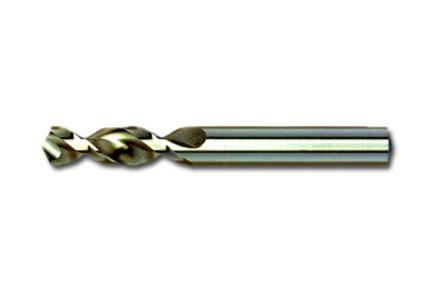

Stub drill HSS-Co DIN 1897, tipo XT33, bronzed

Stub drill 3383 Cleveland DIN 1897, HSS with cobalt bronzed, type XT33 for steel and long-chipping materials with tensile stress up to 1300 N/mm² on automatics. Item running out.

Code: 11270

Brand: Cleveland

Category: Drills

Type: HSS/HSS-Co stub drills

Applications: click here

Helix orientation: left

Shank: cylindrical

Lubrification:

Lengths: Extra short

Tool Material: HSS-Co

Tolerance: h8

Coating: Bronzed

Vertex angle: 130°

Drill shape: DIN 1897

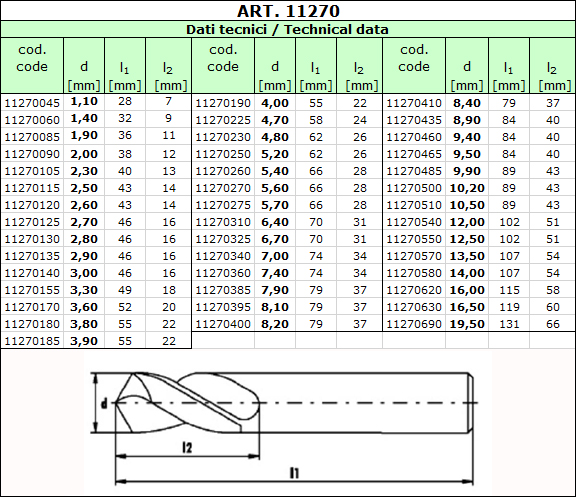

Order Print technical sheet

GB Code	UM	Description
11270045	NR	STUB DRILLS 3383 1,10 DIN1897 XT33 HSS-Co bronze *
11270060	NR	STUB DRILLS 3383 1,40 DIN1897 XT33 HSS-Co bronze *
11270085	NR	STUB DRILLS 3383 1,90 DIN1897 XT33 HSS-Co bronze *
11270105	NR	STUB DRILLS 3383 2,30 DIN1897 XT33 HSS-Co bronze *+
11270170	NR	STUB DRILLS 3383 3,60 DIN1897 XT33 HSS-Co bronze *+
11270180	NR	STUB DRILLS 3383 3,80 DIN1897 XT33 HSS-Co bronze *
11270185	NR	STUB DRILLS 3383 3,90 DIN1897 XT33 HSS-Co bronze *+
11270225	NR	STUB DRILLS 3383 4,70 DIN1897 XT33 HSS-Co bronze *+
11270230	NR	STUB DRILLS 3383 4,80 DIN1897 XT33 HSS-Co bronze *
11270270	NR	STUB DRILLS 3383 5,60 DIN1897 XT33 HSS-Co bronze *+
11270275	NR	STUB DRILLS 3383 5,70 DIN1897 XT33 HSS-Co bronze *+
11270310	NR	STUB DRILLS 3383 6,40 DIN1897 XT33 HSS-Co bronze *
11270325	NR	STUB DRILLS 3383 6,70 DIN1897 XT33 HSS-Co bronze *
11270360	NR	STUB DRILLS 3383 7,40 DIN1897 XT33 HSS-Co bronze *+
11270375	NR	STUB DRILLS 3383 7,70 DIN1897 XT33 HSS-Co bronze *
11270385	NR	STUB DRILLS 3383 7,90 DIN1897 XT33 HSS-Co bronze *
11270395	NR	STUB DRILLS 3383 8,10 DIN1897 XT33 HSS-Co bronze *
11270410	NR	STUB DRILLS 3383 8,40 DIN1897 XT33 HSS-Co bronze *
11270460	NR	STUB DRILLS 3383 9,40 DIN1897 XT33 HSS-Co bronze *
11270465	NR	STUB DRILLS 3383 9,50 DIN1897 XT33 HSS-Co bronze *+
11270485	NR	STUB DRILLS 3383 9,90 DIN1897 XT33 HSS-Co bronze *
11270500	NR	STUB DRILLS 3383 10,20 DIN1897 XT33 HSS-Co bronze *
11270510	NR	STUB DRILLS 3383 10,50 DIN1897 XT33 HSS-Co bronze *+
