Cod. 48183
Timing belt with round teeth HTD

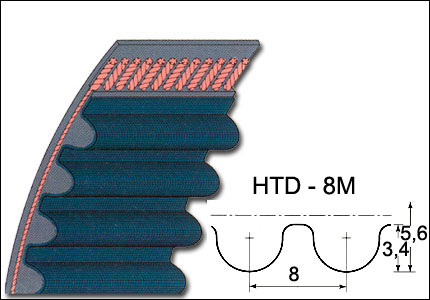

Timing (toothed) belt with round teeth for industrial transmissions type HTD, pitch mm 8, built with neoprene rubber with fiber glass inserts. It is resistant to wether agents and a little to oil, working temperature range from -40°C to +100°C.
The round tooth profile makes to transfer more power with the same pitch than a typical toothed belt, then you have less interferences, more resistance to the tooth jump and to shearing stresses.
Constant allowed speed up to 50 m/s.
Code: 48183
Brand: GB
Category: Belts
Type: Timing belts, round teeth

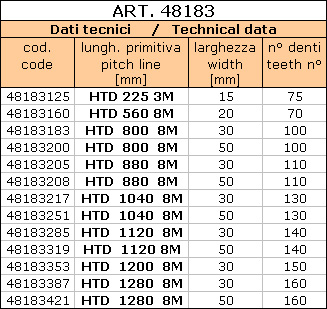

| GB Code | UM | Description | Note |
|---|---|---|---|
| 48183125 | NR | BELTS HTD 225 3M 15 TIMING * | |
| 48183160 | NR | BELTS HTD 560 8M 20 TIMING | |
| 48183183 | NR | BELTS HTD 800 8M 30 TIMING | |
| 48183200 | NR | BELTS HTD 800 8M 50 TIMING | |
| 48183205 | NR | BELTS HTD 880 8M 30 TIMING | |
| 48183208 | NR | BELTS HTD 880 8M 50 TIMING | |
| 48183217 | NR | BELTS HTD 1040 8M 30 TIMING | |
| 48183251 | NR | BELTS HTD 1040 8M 50 TIMING | |
| 48183285 | NR | BELTS HTD 1120 8M 30 TIMING | |
| 48183319 | NR | BELTS HTD 1120 8M 50 TIMING | |
| 48183353 | NR | BELTS HTD 1200 8M 30 TIMING | |
| 48183387 | NR | BELTS HTD 1280 8M 30 TIMING | |
| 48183421 | NR | BELTS HTD 1280 8M 50 TIMING |
