Cod. 48133
Trapezoidal narrow belt SPZ

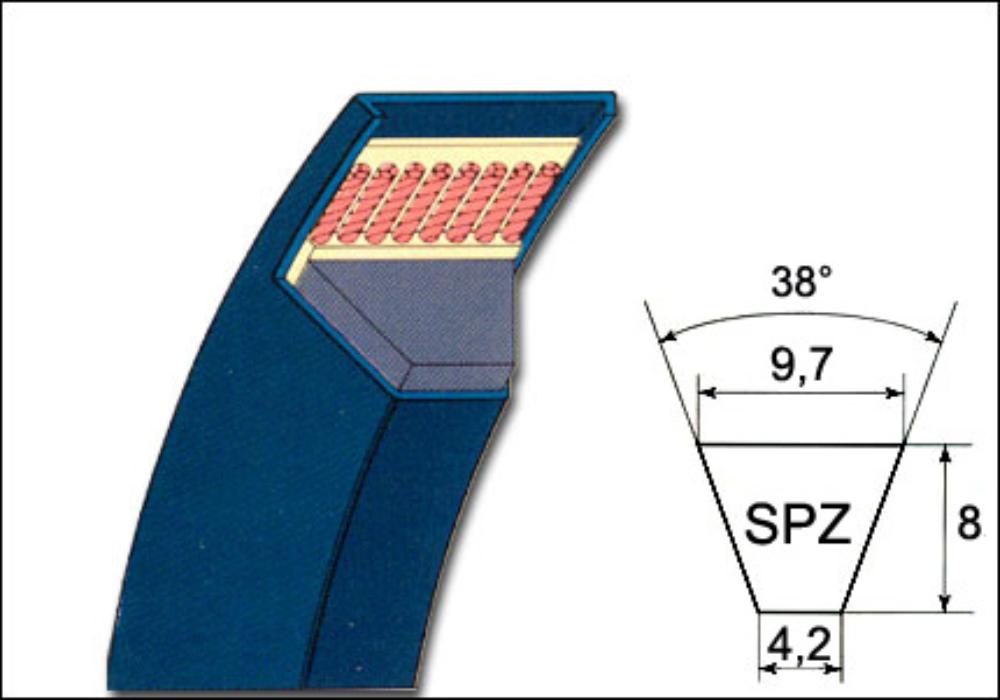

Trapezoidal belt for industrial transmissions with narrow section type DIN SPZ (mm 9,7 x 8), according to DIN 7753, ISO 4184.
The use of polyester inserts allows to obtain high performance, dimensional stability, electro-conductivity (ISO 1813), oil and heat resistance, working temperature range from -30°C to + 80°C.
It is used when there is heavy load conditions or tecnical limits.
Theorical weight 0,074 kg/ml.
Minimum pitch diameter suggested of pulley mm 63.
Article to exhaustion.

Code: 48133

Brand: GB

Category: Belts

Type: Trapezoidal narrow belts DIN

Order Print technical sheet

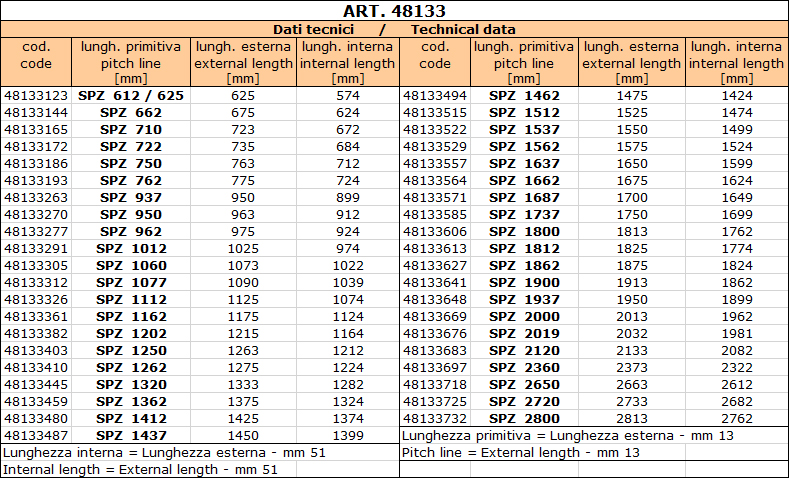

GB Code	UM	Description
48133123	NR	BELTS SPZ 612 TRAPEZOIDAL *+
48133144	NR	BELTS SPZ 662 TRAPEZOIDAL *+
48133165	NR	BELTS SPZ 710 TRAPEZOIDAL *+
48133172	NR	BELTS SPZ 722 TRAPEZOIDAL *+
48133186	NR	BELTS SPZ 750 TRAPEZOIDAL *+
48133193	NR	BELTS SPZ 762 TRAPEZOIDAL *+
48133263	NR	BELTS SPZ 937 TRAPEZOIDAL *+
48133270	NR	BELTS SPZ 950 TRAPEZOIDAL *+
48133277	NR	BELTS SPZ 962 TRAPEZOIDAL *+
48133291	NR	BELTS SPZ 1012 TRAPEZOIDAL *+
48133305	NR	BELTS SPZ 1060 TRAPEZOIDAL *+
48133312	NR	BELTS SPZ 1077 TRAPEZOIDAL *+
48133326	NR	BELTS SPZ 1112 TRAPEZOIDAL *+
48133361	NR	BELTS SPZ 1162 TRAPEZOIDAL *+
48133382	NR	BELTS SPZ 1202 TRAPEZOIDAL *+
48133403	NR	BELTS SPZ 1250 TRAPEZOIDAL *+
48133410	NR	BELTS SPZ 1262 TRAPEZOIDAL *+
48133445	NR	BELTS SPZ 1320 TRAPEZOIDAL *+
48133459	NR	BELTS SPZ 1362 TRAPEZOIDAL *+
48133480	NR	BELTS SPZ 1412 TRAPEZOIDAL *+
48133487	NR	BELTS SPZ 1437 TRAPEZOIDAL *+
48133494	NR	BELTS SPZ 1462 TRAPEZOIDAL *+
48133515	NR	BELTS SPZ 1512 TRAPEZOIDAL *+
48133522	NR	BELTS SPZ 1537 TRAPEZOIDAL *+
48133529	NR	BELTS SPZ 1562 TRAPEZOIDAL *+
48133557	NR	BELTS SPZ 1637 TRAPEZOIDAL *+
48133564	NR	BELTS SPZ 1662 TRAPEZOIDAL *+
48133571	NR	BELTS SPZ 1687 TRAPEZOIDAL *+
48133585	NR	BELTS SPZ 1737 TRAPEZOIDAL *+
48133606	NR	BELTS SPZ 1800 TRAPEZOIDAL *+
48133613	NR	BELTS SPZ 1812 TRAPEZOIDAL *+
48133627	NR	BELTS SPZ 1862 TRAPEZOIDAL *+
48133641	NR	BELTS SPZ 1900 TRAPEZOIDAL *+
48133648	NR	BELTS SPZ 1937 TRAPEZOIDAL *+
48133669	NR	BELTS SPZ 2000 TRAPEZOIDAL *+
48133676	NR	BELTS SPZ 2019 TRAPEZOIDAL *+
48133683	NR	BELTS SPZ 2120 TRAPEZOIDAL *+
48133690	NR	BELTS SPZ 2240 TRAPEZOIDAL *+
48133697	NR	BELTS SPZ 2360 TRAPEZOIDAL *+
48133718	NR	BELTS SPZ 2650 TRAPEZOIDAL *+
48133725	NR	BELTS SPZ 2720 TRAPEZOIDAL *+
48133732	NR	BELTS SPZ 2800 TRAPEZOIDAL *+
