Insert TN 60° PP INT for right internal threading 60°
Cod. 18879

Insert TN 60° PP INT for right internal threading 60°

Insert Dormer-Pramet TN 60° PP INT for producing ISO metric and unified nation UN 60° internal right-hand threads with a range of pitches, partial profile; first-choice universal all-ground insert, precision line, with a rounded cutting edge, suitable for stable machining conditions and continuous cut. Highly versatile PVD T8030 grade for low/medium cutting speeds; primary application P, M and K, secondary N and S.

Код: 18879
Марка: DORMER PRAMET
Категория: Токарная обработка
Тип: Пластины для резьбые
Приложения: кликните сюда
Insert working mode:
Insert shape:
Тип инструмента: Insert-handlers and Inserts
Материал инструмента:
Покрытие:
Система блокировки: S
Ориентация: R
Код GB UM Описание Примечание

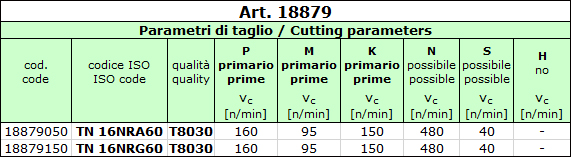

18879050 NR INSERTS TN 16NRA60 60° T8030 P35, M25, K30
18879150 NR INSERTS TN 16NRG60 60° T8030 P35, M25, K30
Техническая спецификация Insert TN 60° PP INT for right internal threading 60°
Код GB Описание
18858 Toolholder SIR for internal threading
