Rubber wheel, turning support with plate

Cod. 84753

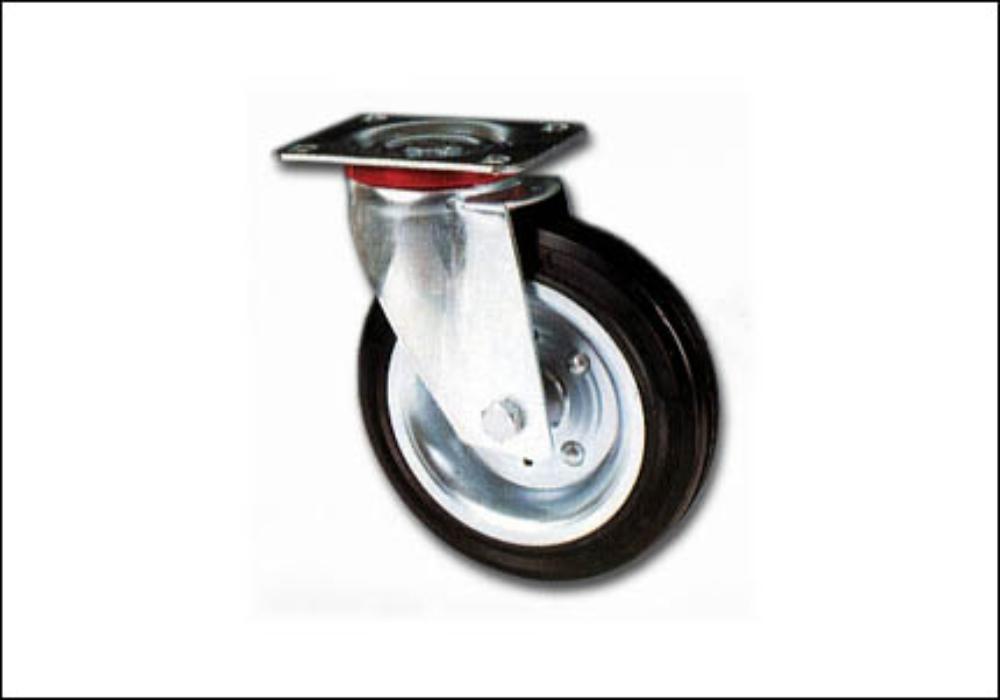

Rubber wheel, turning support with plate

Wheel made of standard rubber ring coated with rubber, with flanges in zinc-chromium plated pressed steel and hub on roller bearing. Medium duty support in zinc-chromium plated pressed steel with plate, turning on double rim of balls, assembled with self locking nut, with dust cover ring on the balls. Working temperature from -20 to +80°C. Suitable for industrial use.

Code: 84753
Brand: AVO
Category: Wheels
Type: Rubber wheels
GB Code UM Description Note
84753080 NR WHEELS TURNING 80 80 ON ROLLER BEARINGS
84753100 NR WHEELS TURNING 80 100 ON ROLLER BEARINGS
84753125 NR WHEELS TURNING 80 125 ON ROLLER BEARINGS
84753140 NR WHEELS TURNING 80 140 ON ROLLER BEARINGS
84753160 NR WHEELS TURNING 80 160 ON ROLLER BEARINGS
84753180 NR WHEELS TURNING 80 180 ON ROLLER BEARINGS
84753200 NR WHEELS TURNING 80 200 ON ROLLER BEARINGS

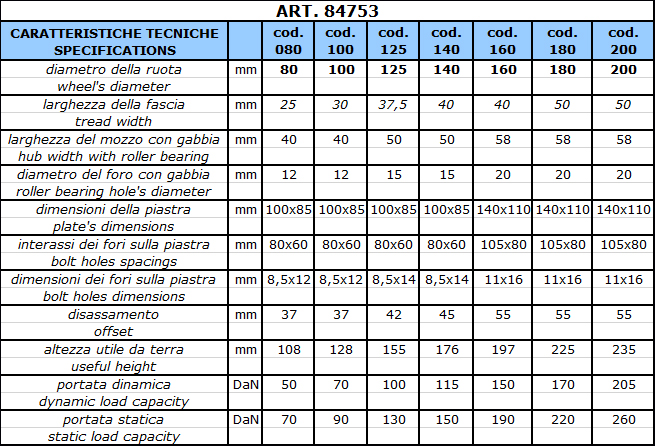

data sheet Rubber wheel, turning support with plate
GB Code Description
84756 Rubber wheel, fixed support with plate
84759 Rubber wheel, turning support with stem
84762 Rubber wheel, turning support with plate and brake
