Cod. 13126
Circular die GAS

Name: Gnutti Bortolo
Address: via Monsuello 34, Lumezzane, Lombardia, 25065, IT
Telephone: +390308926011

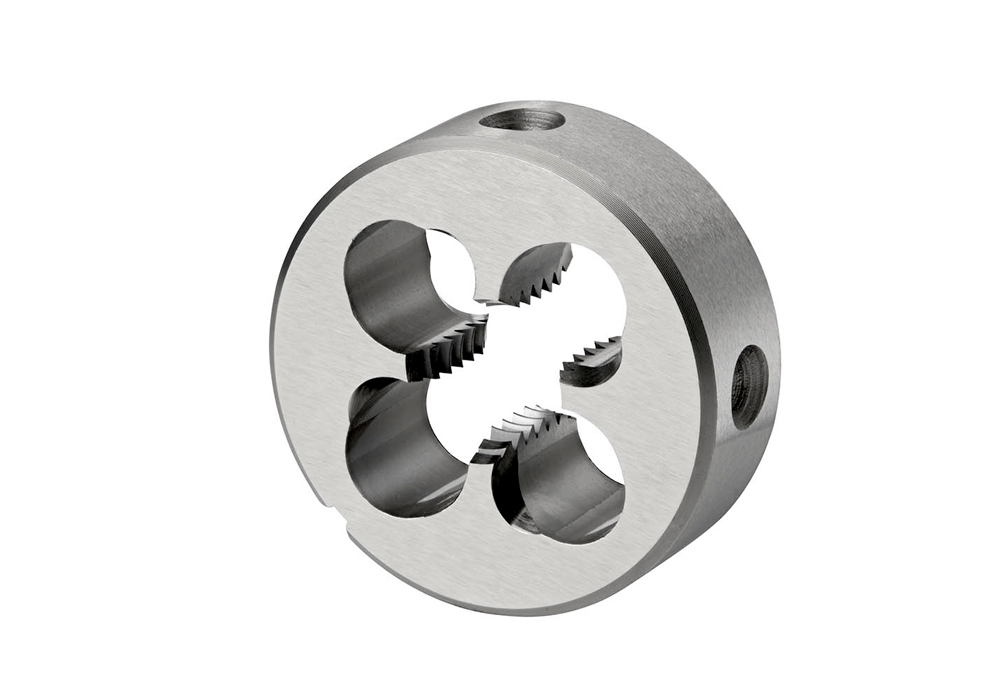

Circular die G with chamfer Dormer F170, DIN-EN 24 231. Material HSS.

Code: 13126

Brand: SANDVIK DORMER

Category: Dies

Type: GAS dies

Threading: G - Cylindrical GAS not dryseal thread

Tolerances: Non specificato

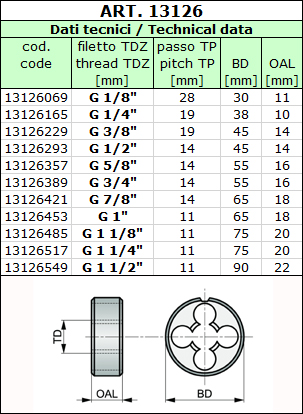

GB Code	UM	Description
13126069	NR	DIES F170 G 1/8" D.30 chamfer
13126165	NR	DIES F170 G 1/4" D.38 chamfer
13126229	NR	DIES F170 G 3/8" D.45 chamfer
13126293	NR	DIES F170 G 1/2" D.45 chamfer
13126357	NR	DIES F170 G 5/8" D.55 chamfer
13126389	NR	DIES F170 G 3/4" D.55 chamfer
13126421	NR	DIES 722 G 7/8" D.65 chamfer
13126453	NR	DIES F170 G 1" D.65 chamfer
13126485	NR	DIES 722 G 1"1/8 D.75 chamfer
13126517	NR	DIES F170 G 1"1/4 D.75 chamfer
13126549	NR	DIES F170 G 1"1/2 D.90 chamfer
