Cod. 41127

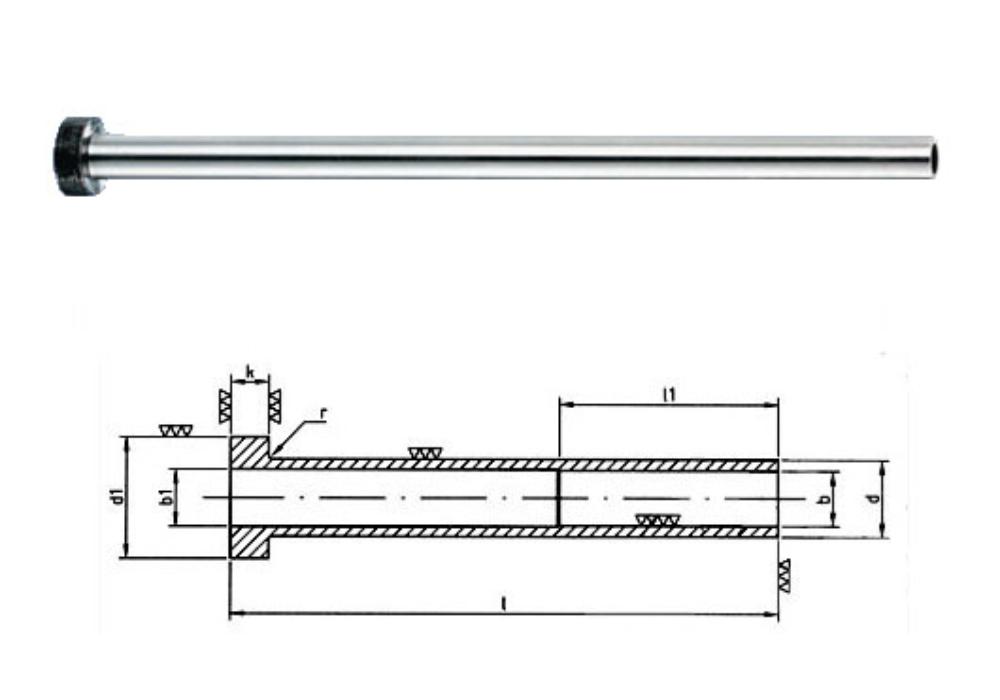

Ejector sleeve for drawing DIN ISO 8405, hardened
Ejector sleeve made of hardened and ground WS steel, the head is not forged, DIN ISO 8405. Shaft hardness 58/60 HRC, head hardness 45±5 HRC.
Code: 41127
Brand: GB
Category: Standardized elements for dies
Type: Sleeve ejectors

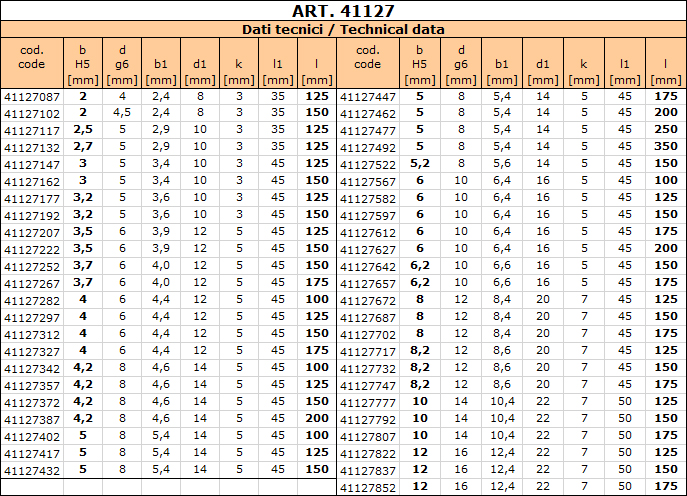

| GB Code | UM | Description | Note |
|---|---|---|---|
| 41127087 | NR | EJECTOR SLEEVES 4,0X 2,0X125 WS hardened DINISO8405 | |
| 41127117 | NR | EJECTOR SLEEVES 5,0X 2,5X125 WS hardened DINISO8405 ** | |
| 41127132 | NR | EJECTOR SLEEVES 5,0X 2,7X125 WS hardened DINISO8405 ** | |
| 41127147 | NR | EJECTOR SLEEVES 5,0X 3,0X125 WS hardened DINISO8405 | |
| 41127162 | NR | EJECTOR SLEEVES 5,0X 3,0X150 WS hardened DINISO8405 | |
| 41127177 | NR | EJECTOR SLEEVES 5,0X 3,2X125 WS hardened DINISO8405 ** | |
| 41127192 | NR | EJECTOR SLEEVES 5,0X 3,2X150 WS hardened DINISO8405 ** | |
| 41127207 | NR | EJECTOR SLEEVES 6,0X 3,5X125 WS hardened DINISO8405 | |
| 41127222 | NR | EJECTOR SLEEVES 6,0X 3,5X150 WS hardened DINISO8405 ** | |
| 41127252 | NR | EJECTOR SLEEVES 6,0X 3,7X150 WS hardened DINISO8405 ** | |
| 41127267 | NR | EJECTOR SLEEVES 6,0X 3,7X175 WS hardened DINISO8405 ** | |
| 41127282 | NR | EJECTOR SLEEVES 6,0X 4,0X100 WS hardened DINISO8405 | |
| 41127297 | NR | EJECTOR SLEEVES 6,0X 4,0X125 WS hardened DINISO8405 | |
| 41127312 | NR | EJECTOR SLEEVES 6,0X 4,0X150 WS hardened DINISO8405 | |
| 41127327 | NR | EJECTOR SLEEVES 6,0X 4,0X175 WS hardened DINISO8405 ** | |
| 41127342 | NR | EJECTOR SLEEVES 8,0X 4,2X100 WS hardened DINISO8405 | |
| 41127357 | NR | EJECTOR SLEEVES 8,0X 4,2X125 WS hardened DINISO8405 | |
| 41127372 | NR | EJECTOR SLEEVES 8,0X 4,2X150 WS hardened DINISO8405 | |
| 41127387 | NR | EJECTOR SLEEVES 8,0X 4,2X200 WS hardened DINISO8405 ** | |
| 41127402 | NR | EJECTOR SLEEVES 8,0X 5,0X100 WS hardened DINISO8405 | |
| 41127417 | NR | EJECTOR SLEEVES 8,0X 5,0X125 WS hardened DINISO8405 ** | |
| 41127432 | NR | EJECTOR SLEEVES 8,0X 5,0X150 WS hardened DINISO8405 | |
| 41127447 | NR | EJECTOR SLEEVES 8,0X 5,0X175 WS hardened DINISO8405 | |
| 41127462 | NR | EJECTOR SLEEVES 8,0X 5,0X200 WS hardened DINISO8405 ** | |
| 41127477 | NR | EJECTOR SLEEVES 8,0X 5,0X250 WS hardened DINISO8405 ** | |
| 41127492 | NR | EJECTOR SLEEVES 8,0X 5,0X350 WS hardened DINISO8405 ** | |
| 41127522 | NR | EJECTOR SLEEVES 8,0X 5,2X150 WS hardened DINISO8405 ** | |
| 41127567 | NR | EJECTOR SLEEVES 10,0X 6,0X100 WS hardened DINISO8405 | |
| 41127582 | NR | EJECTOR SLEEVES 10,0X 6,0X125 WS hardened DINISO8405 | |
| 41127597 | NR | EJECTOR SLEEVES 10,0X 6,0X150 WS hardened DINISO8405 | |
| 41127612 | NR | EJECTOR SLEEVES 10,0X 6,0X175 WS hardened DINISO8405 | |
| 41127627 | NR | EJECTOR SLEEVES 10,0X 6,0X200 WS hardened DINISO8405 ** | |
| 41127642 | NR | EJECTOR SLEEVES 10,0X 6,2X150 WS hardened DINISO8405 ** | can only be ordered on request |
| 41127657 | NR | EJECTOR SLEEVES 10,0X 6,2X175 WS hardened DINISO8405 ** | can only be ordered on request |
| 41127672 | NR | EJECTOR SLEEVES 12,0X 8,0X125 WS hardened DINISO8405 | |
| 41127687 | NR | EJECTOR SLEEVES 12,0X 8,0X150 WS hardened DINISO8405 ** | |
| 41127702 | NR | EJECTOR SLEEVES 12,0X 8,0X175 WS hardened DINISO8405 | |
| 41127717 | NR | EJECTOR SLEEVES 12,0X 8,2X125 WS hardened DINISO8405 ** | |
| 41127732 | NR | EJECTOR SLEEVES 12,0X 8,2X150 WS hardened DINISO8405 ** | |
| 41127747 | NR | EJECTOR SLEEVES 12,0X 8,2X175 WS hardened DINISO8405 ** | |
| 41127777 | NR | EJECTOR SLEEVES 14,0X10,0X125 WS hardened DINISO8405 ** | |
| 41127792 | NR | EJECTOR SLEEVES 14,0X10,0X150 WS hardened DINISO8405 ** | |
| 41127807 | NR | EJECTOR SLEEVES 14,0X10,0X175 WS hardened DINISO8405 ** | |
| 41127822 | NR | EJECTOR SLEEVES 16,0X12,0X125 WS hardened DINISO8405 | |
| 41127837 | NR | EJECTOR SLEEVES 16,0X12,0X150 WS hardened DINISO8405 | |
| 41127852 | NR | EJECTOR SLEEVES 16,0X12,0X175 WS hardened DINISO8405 |
