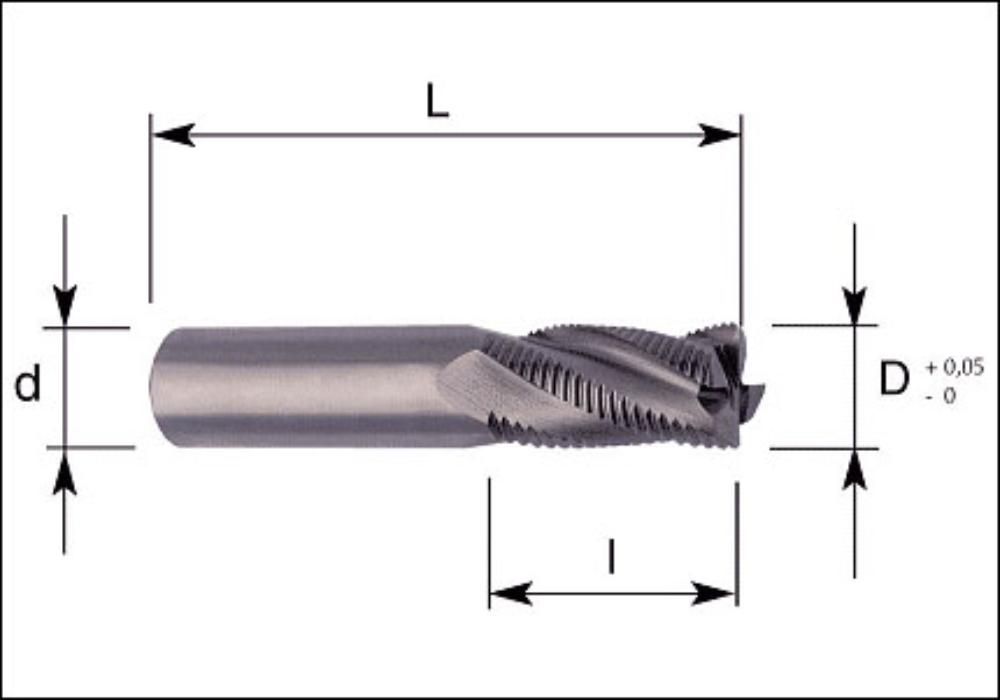

HSS-Co PM roughing short end mill, center cut

Roughing shouldering end mill with center cut, sintered HSS-Co8,5% with bright finish, UNI 8244, DIN 844A, ISO 1641/I. Cutting edge profile NR for roughing medium-alloy materials, short length, cylindrical shank; Weldon or threaded shank available upon request.

Code: 13750

Brand: GB

Category: End mills

Type: Roughing cutters

Applications: click here

Helix - Rake: 28°

Flutes Number: 3 4

Lengths: Short

Tool Material: HSS-Co Sint.

Use: Side/Face

Coating: None

Flutes profile: NR

Speed: normal

Order Print technical sheet

Articles

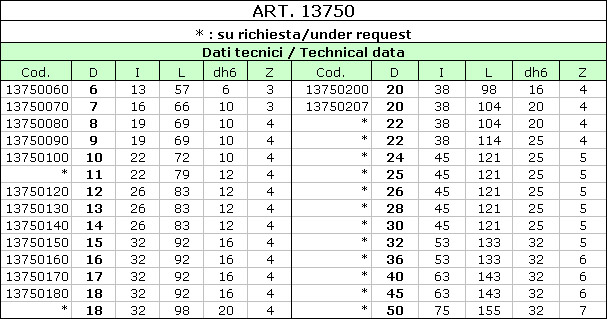

Data sheet

GB Code	UM	Description
13750060	NR	END MILLS 13750 6- 6 Z.3 Short NR PMCo8,5
13750070	NR	END MILLS 13750 7-10 Z.3 Short NR PMCo8,5
13750080	NR	END MILLS 13750 8-10 Z.4 Short NR PMCo8,5
13750090	NR	END MILLS 13750 9-10 Z.4 Short NR PMCo8,5 **+
13750100	NR	END MILLS 13750 10-10 Z.4 Short NR PMCo8,5
13750120	NR	END MILLS 13750 12-12 Z.4 Short NR PMCo8,5
13750130	NR	END MILLS 13750 13-12 Z.4 Short NR PMCo8,5
13750140	NR	END MILLS 13750 14-12 Z.4 Short NR PMCo8,5
13750150	NR	END MILLS 13750 15-16 Z.4 Short NR PMCo8,5
13750160	NR	END MILLS 13750 16-16 Z.4 Short NR PMCo8,5
13750170	NR	END MILLS 13750 17-16 Z.4 Short NR PMCo8,5
13750180	NR	END MILLS 13750 18-16 Z.4 Short NR PMCo8,5
13750200	NR	END MILLS 13750 20-16 Z.4 Short NR PMCo8,5
13750207	NR	END MILLS 13750 20-20 Z.4 Short NR PMCo8,5
