Cod. 11282

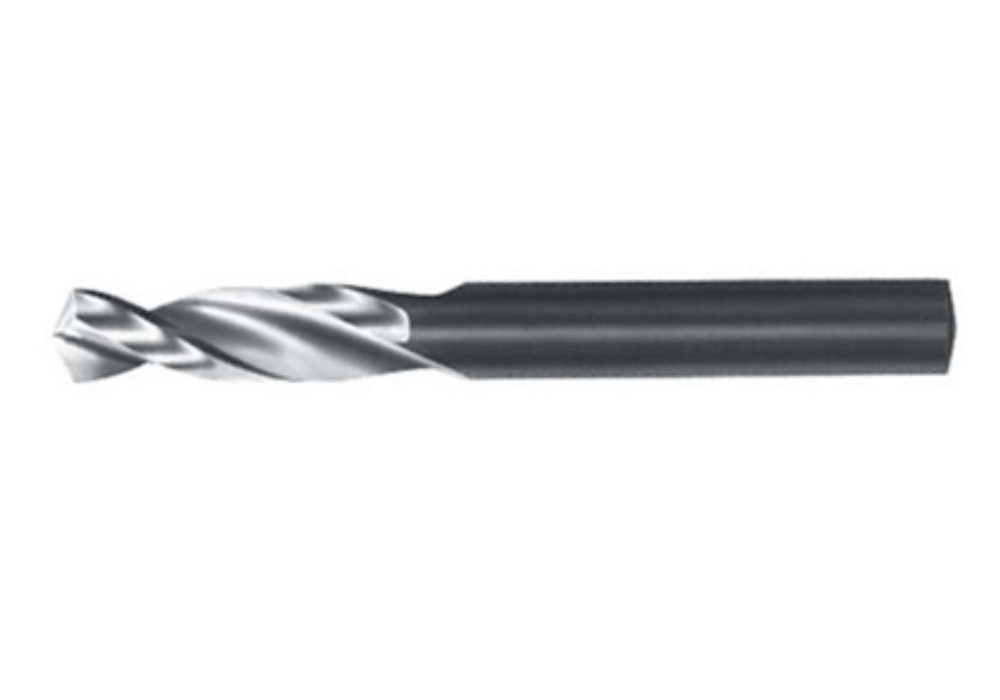

Stub drill HSS DIN 1897, type FN, nitrided

Stub drill 81140 Hartner DIN 1897, HSS with bright surface up to a diameter of 2.35 mm, nitrided lands from a diameter of 2.36 mm to 15.50 mm, vaporized from a diameter of 16.00 mm onwards, type FN for very hard steels. Special drill, suitable for automatic, stainless and heat-resistant steels, for case hardening and tempering with tensile strength up to 800 N/mm², aluminum and copper alloys with short and medium chips, on automatic and revolver lathes.

Code: 11282

Brand: Hartner

Category: Drills

Type: HSS/HSS-Co stub drills

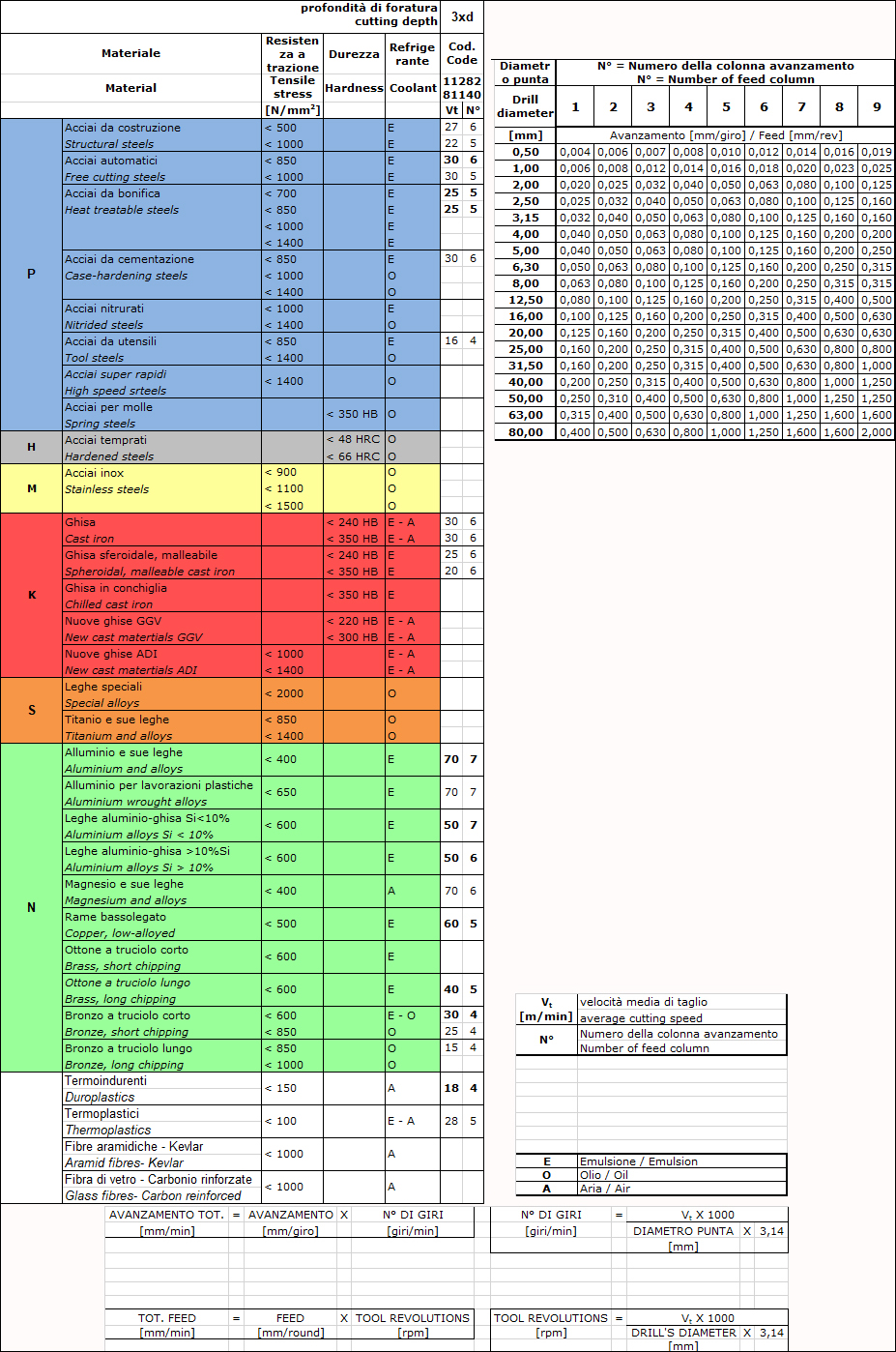

Applications: click here

Helix orientation: left

Shank: cylindrical

Lubrification:

Lengths: Extra short

Tool Material: HSS

Tolerance: h8

Coating: Nitrided

Vertex angle: 130°

Drill shape: DIN 1897

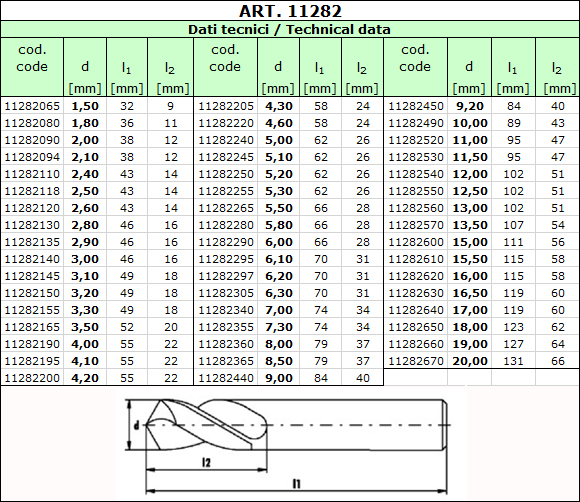

Order Print technical sheet

GB Code	UM	Description
11282065	NR	STUB DRILLS 81140 1,50 DIN1897 FN HSS
11282080	NR	STUB DRILLS 81140 1,80 DIN1897 FN HSS
11282090	NR	STUB DRILLS 81140 2,00 DIN1897 FN HSS
11282094	NR	STUB DRILLS 81140 2,10 DIN1897 FN HSS +
11282110	NR	STUB DRILLS 81140 2,40 DIN1897 FN HSS Nit
11282118	NR	STUB DRILLS 81140 2,50 DIN1897 FN HSS Nit
11282120	NR	STUB DRILLS 81140 2,60 DIN1897 FN HSS Nit
11282130	NR	STUB DRILLS 81140 2,80 DIN1897 FN HSS Nit
11282135	NR	STUB DRILLS 81140 2,90 DIN1897 FN HSS Nit
11282140	NR	STUB DRILLS 81140 3,00 DIN1897 FN HSS Nit +
11282145	NR	STUB DRILLS 81140 3,10 DIN1897 FN HSS Nit
11282150	NR	STUB DRILLS 81140 3,20 DIN1897 FN HSS Nit
11282155	NR	STUB DRILLS 81140 3,30 DIN1897 FN HSS Nit
11282165	NR	STUB DRILLS 81140 3,50 DIN1897 FN HSS Nit
11282190	NR	STUB DRILLS 81140 4,00 DIN1897 FN HSS Nit
11282195	NR	STUB DRILLS 81140 4,10 DIN1897 FN HSS Nit +
11282200	NR	STUB DRILLS 81140 4,20 DIN1897 FN HSS Nit
11282205	NR	STUB DRILLS 81140 4,30 DIN1897 FN HSS Nit +
11282220	NR	STUB DRILLS 81140 4,60 DIN1897 FN HSS Nit +
11282240	NR	STUB DRILLS 81140 5,00 DIN1897 FN HSS Nit
11282245	NR	STUB DRILLS 81140 5,10 DIN1897 FN HSS Nit
11282250	NR	STUB DRILLS 81140 5,20 DIN1897 FN HSS Nit
11282255	NR	STUB DRILLS 81140 5,30 DIN1897 FN HSS Nit
11282265	NR	STUB DRILLS 81140 5,50 DIN1897 FN HSS Nit
11282280	NR	STUB DRILLS 81140 5,80 DIN1897 FN HSS Nit
11282290	NR	STUB DRILLS 81140 6,00 DIN1897 FN HSS Nit
11282295	NR	STUB DRILLS 81140 6,10 DIN1897 FN HSS Nit
11282297	NR	STUB DRILLS 81140 6,20 DIN1897 FN HSS Nit
11282305	NR	STUB DRILLS 81140 6,30 DIN1897 FN HSS Nit
11282340	NR	STUB DRILLS 81140 7,00 DIN1897 FN HSS Nit
11282355	NR	STUB DRILLS 81140 7,30 DIN1897 FN HSS Nit
11282360	NR	STUB DRILLS 81140 8,00 DIN1897 FN HSS Nit +
11282365	NR	STUB DRILLS 81140 8,50 DIN1897 FN HSS Nit
11282440	NR	STUB DRILLS 81140 9,00 DIN1897 FN HSS Nit
11282450	NR	STUB DRILLS 81140 9,20 DIN1897 FN HSS Nit
11282490	NR	STUB DRILLS 81140 10,00 DIN1897 FN HSS Nit +
11282520	NR	STUB DRILLS 81140 11,00 DIN1897 FN HSS Nit
11282530	NR	STUB DRILLS 81140 11,50 DIN1897 FN HSS Nit
11282540	NR	STUB DRILLS 81140 12,00 DIN1897 FN HSS Nit
11282550	NR	STUB DRILLS 81140 12,50 DIN1897 FN HSS Nit
11282560	NR	STUB DRILLS 81140 13,00 DIN1897 FN HSS Nit
11282570	NR	STUB DRILLS 81140 13,50 DIN1897 FN HSS Nit
11282600	NR	STUB DRILLS 81140 15,00 DIN1897 FN HSS Nit
11282610	NR	STUB DRILLS 81140 15,50 DIN1897 FN HSS steam
11282620	NR	STUB DRILLS 81140 16,00 DIN1897 FN HSS steam
11282630	NR	STUB DRILLS 81140 16,50 DIN1897 FN HSS steam
11282640	NR	STUB DRILLS 81140 17,00 DIN1897 FN HSS steam
11282650	NR	STUB DRILLS 81140 18,00 DIN1897 FN HSS steam
11282660	NR	STUB DRILLS 81140 19,00 DIN1897 FN HSS steam
11282670	NR	STUB DRILLS 81140 20,00 DIN1897 FN HSS steam
