Machine reamer DIN 212E 45°, HSS-Co

Name: Gnutti Bortolo
Address: via Monsuello 34, Lumezzane, Lombardia, 25065, IT
Telephone: +390308926011
Price range: $

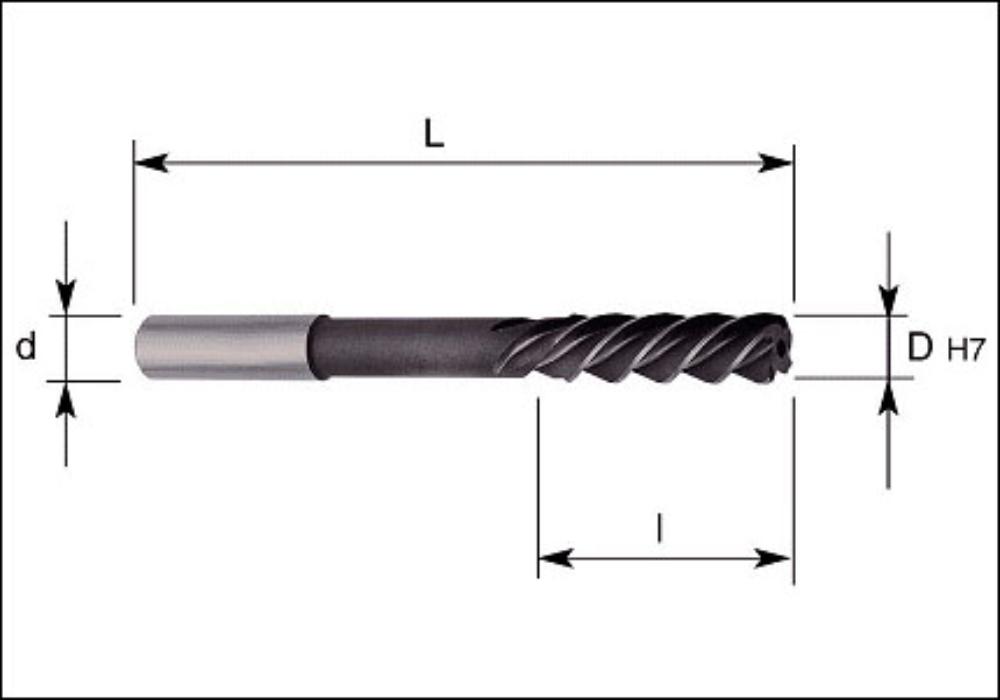

Machine reamer for blind and through holes in tolerance H7, DIN 212E. Material HSS-Co or HSS-CoPM, 45° helical cutting edges, execution for finishing long-chipping materials, cylindrical shank.

Code: 15550

Brand: GB

Category: Reamers

Type: HSS-Co straight shank reamers

Order Print technical sheet

Articles

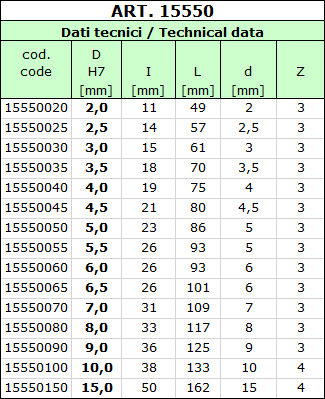

Data sheet

GB Code	UM	Description	Note
15550020	NR	MACHINE REAMERS 15550 2,0 45° DIN212E PMCo8,5 **
15550025	NR	MACHINE REAMERS 15550 2,5 45° DIN212E PMCo8, 5 **
15550030	NR	MACHINE REAMERS 15550 3,0 45° DIN212E PMCo8,5 **+
15550035	NR	MACHINE REAMERS 15550 3,5 45° DIN212E PMCo8,5 **+
15550040	NR	MACHINE REAMERS 15550 4,0 45° DIN212E HSS-Co *	can only be ordered on request
15550045	NR	MACHINE REAMERS 15550 4,5 45° DIN212E PMCo8,5 **+
15550050	NR	MACHINE REAMERS 15550 5,0 45° DIN212E HSS-Co **	can only be ordered on reuqest
15550055	NR	MACHINE REAMERS 15550 5,5 45° DIN212E HSS-Co **+
15550060	NR	MACHINE REAMERS 15550 6,0 45° DIN212E HSS-Co **	can only be ordered on request
15550065	NR	MACHINE REAMERS 15550 6,5 45° DIN212E HSS-Co **+	can only be ordered on request
15550070	NR	MACHINE REAMERS 15550 7,0 45° DIN212E PMCo8, 5 **+
15550080	NR	MACHINE REAMERS 15550 8,0 45° DIN212E HSS-Co **	can only be ordered on request
15550090	NR	MACHINE REAMERS 15550 9,0 45° DIN212E PMCo8,5 **+
15550100	NR	MACHINE REAMERS 15550 10,0 45° DIN212E HSS-Co **	can only be ordered on request
15550150	NR	MACHINE REAMERS 15550 15,0 45° DIN212E PMCo8, 5 **+
