Pilot pin with 2 diameters, special measures

Pilot pin with 2 diameters for moulds, special measures
Material steel 16 Cr Ni 4.
Finishing: casehardened, hardened and tempered, ground.
Hardness HRC 60 - 62.

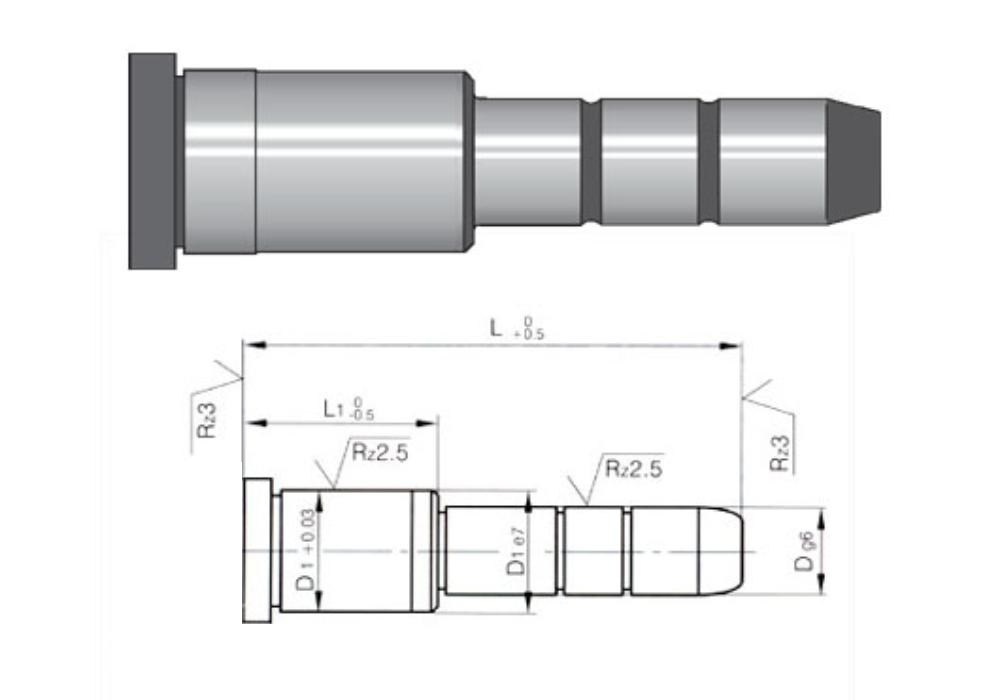

Dimensions written in the items list are related to D / D1 x L1 x L in mm.
Exhaustion of this item in stock: availabilty untill stock out.

Code: 41229

Brand: GB

Category: Standardized elements for dies

Type: Pilot pins

Order Print technical sheet

Articles

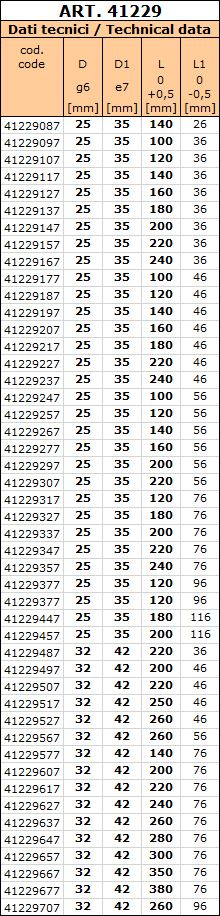

Data sheet

GB Code	UM	Description
41229087	NR	PILOT PINS 2D 25/35X 26X140 SP*
41229097	NR	PILOT PINS 2D 25/35X 36X100 SP*
41229107	NR	PILOT PINS 2D 25/35X 36X120 SP*
41229117	NR	PILOT PINS 2D 25/35X 36X140 SP*
41229127	NR	PILOT PINS 2D 25/35X 36X160 SP*
41229137	NR	PILOT PINS 2D 25/35X 36X180 SP*
41229147	NR	PILOT PINS 2D 25/35X 36X200 SP*
41229157	NR	PILOT PINS 2D 25/35X 36X220 SP*
41229167	NR	PILOT PINS 2D 25/35X 36X240 SP*
41229177	NR	PILOT PINS 2D 25/35X 46X100 SP*
41229187	NR	PILOT PINS 2D 25/35X 46X120 SP*
41229197	NR	PILOT PINS 2D 25/35X 46X140 SP*
41229207	NR	PILOT PINS 2D 25/35X 46X160 SP*
41229217	NR	PILOT PINS 2D 25/35X 46X180 SP*
41229227	NR	PILOT PINS 2D 25/35X 46X220 SP*
41229237	NR	PILOT PINS 2D 25/35X 46X240 SP*
41229247	NR	PILOT PINS 2D 25/35X 56X100 SP*
41229257	NR	PILOT PINS 2D 25/35X 56X120 SP*
41229267	NR	PILOT PINS 2D 25/35X 56X140 SP*
41229277	NR	PILOT PINS 2D 25/35X 56X160 SP*
41229297	NR	PILOT PINS 2D 25/35X 56X200 SP*
41229307	NR	PILOT PINS 2D 25/35X 56X220 SP*
41229317	NR	PILOT PINS 2D 25/35X 76X120 SP*
41229327	NR	PILOT PINS 2D 25/35X 76X180 SP*
41229337	NR	PILOT PINS 2D 25/35X 76X200 SP*
41229347	NR	PILOT PINS 2D 25/35X 76X220 SP*
41229357	NR	PILOT PINS 2D 25/35X 76X240 SP*
41229377	NR	PILOT PINS 2D 25/35X 96X120 SP*
41229447	NR	PILOT PINS 2D 25/35X116X180 SP*
41229457	NR	PILOT PINS 2D 25/35X116X200 SP*
41229487	NR	PILOT PINS 2D 32/42X 36X220 SP*
41229497	NR	PILOT PINS 2D 32/42X 46X200 SP*
41229507	NR	PILOT PINS 2D 32/42X 46X220 SP*
41229517	NR	PILOT PINS 2D 32/42X 46X250 SP*
41229527	NR	PILOT PINS 2D 32/42X 46X260 SP*
41229567	NR	PILOT PINS 2D 32/42X 56X260 SP*
41229577	NR	PILOT PINS 2D 32/42X 76X140 SP*
41229607	NR	PILOT PINS 2D 32/42X 76X200 SP*
41229617	NR	PILOT PINS 2D 32/42X 76X220 SP*
41229627	NR	PILOT PINS 2D 32/42X 76X240 SP*
41229637	NR	PILOT PINS 2D 32/42X 76X260 SP*
41229647	NR	PILOT PINS 2D 32/42X 76X280 SP*
41229657	NR	PILOT PINS 2D 32/42X 76X300 SP*
41229667	NR	PILOT PINS 2D 32/42X 76X350 SP*
41229677	NR	PILOT PINS 2D 32/42X 76X380 SP*
41229707	NR	PILOT PINS 2D 32/42X 96X260 SP*
