Insert TN 60° PP EXT for external right threading 60°
Cod. 18873

Insert TN 60° PP EXT for external right threading 60°

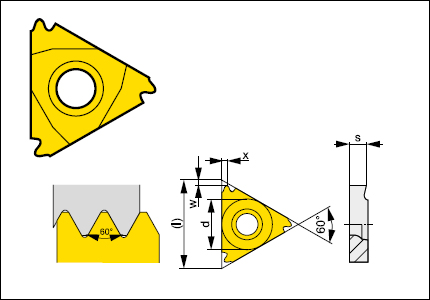

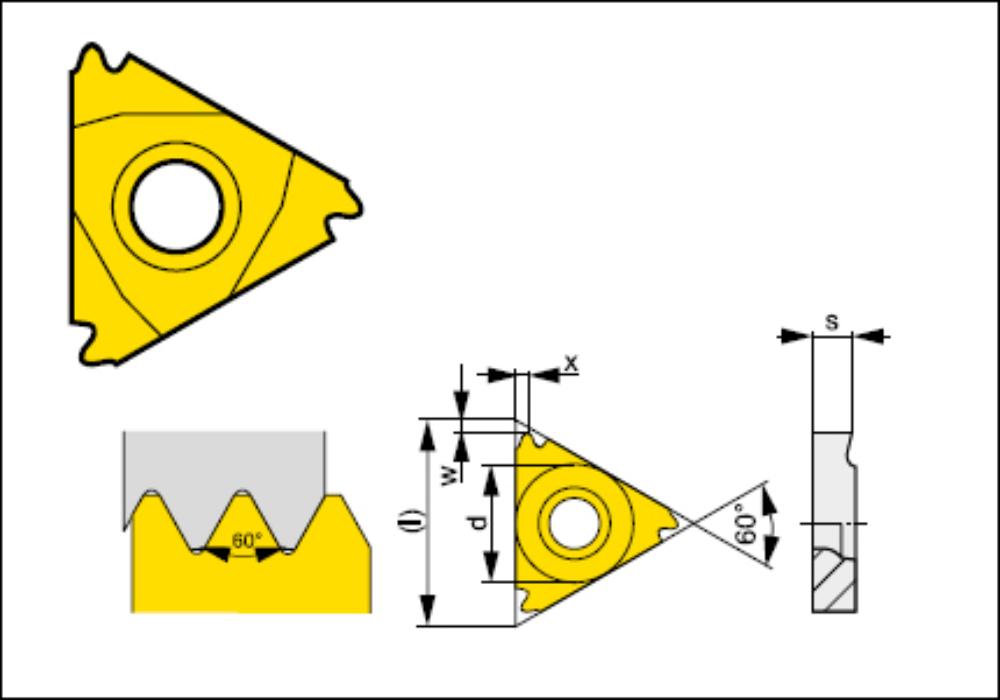

Insert Dormer-Pramet TN 60° PP EXT for producing ISO metric and unified nation UN 60° external right-hand threads with a range of pitches, partial profile; first-choice universal all-ground insert, precision line, with a rounded cutting edge, suitable for stable machining conditions and continuous cut. Highly versatile PVD T8030 grade for low/medium cutting speeds; primary application P, M and K, secondary N and S.

Code: 18873
Brand: DORMER PRAMET
Category: Turning inserts
Type: Threading inserts
Applications: click here
Insert working mode:
Insert shape: TN
Tool type: Insert-handlers and Inserts
Tool Material: HM
Coating: PVD
Blockage system: S
Orientation: R
GB Code UM Description Note
18873150 NR INSERTS TN 16ERG60 60° T8030 P35, M25, K30

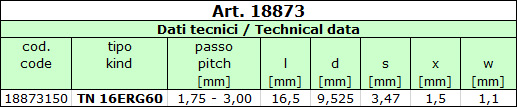

data sheet Insert TN 60° PP EXT for external right threading 60°
GB Code Description
18852 Toolholder SER for right external threading
