HSS-Co inverted dovetail cutter

Inverted dovetail cutter for form milling, HSS-Co5% with bright finish, UNI 8262B, DIN 1833B, ISO 3959. Cutting edge profile N for finishing medium-alloy materials, cylindrical shank; Weldon or threaded shank available upon request.

Code: 14330

Brand: GB

Category: End mills

Type: Various form cutters

Applications: click here

Helix - Rake: None

Flutes Number: 10 12

Lengths: Not specified

Tool Material: HSS-Co

Use: Side

Coating: None

Flutes profile: N

Speed: normal

Order Print technical sheet

Articles

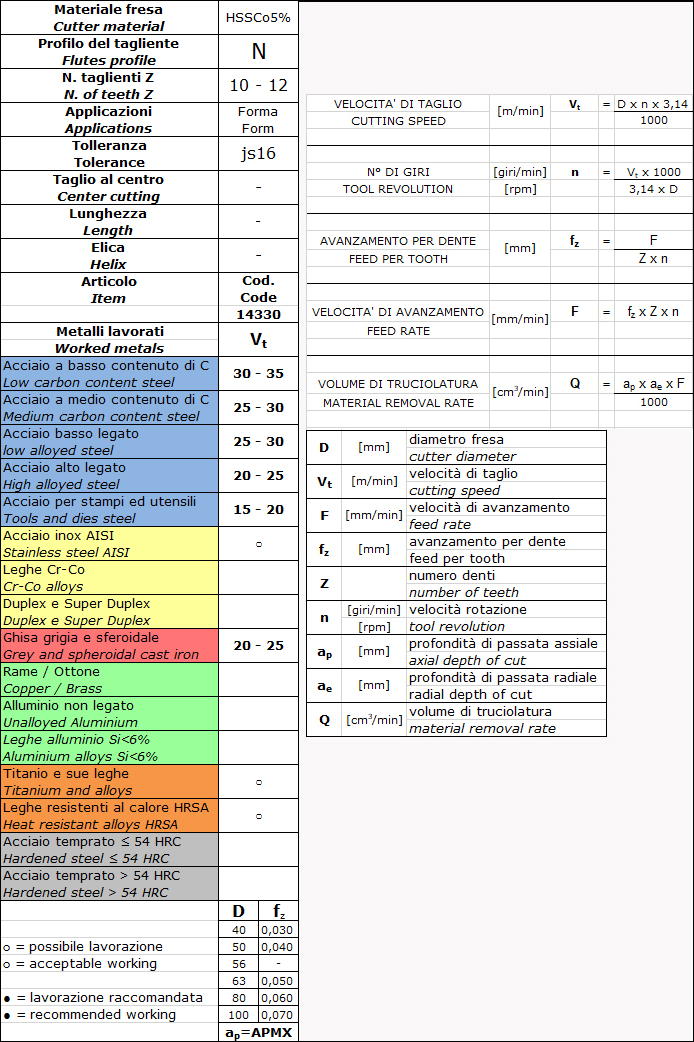

Data sheet

GB Code	UM	Description
14330080	NR	CUTTERS 14330 45° 16-12 inverted dovetail HSS-Co **
14330095	NR	CUTTERS 14330 45° 20-12 inverted dovetail HSS-Co **
14330110	NR	CUTTERS 14330 45° 25-12 inverted dovetail HSS-Co **
14330125	NR	CUTTERS 14330 45° 32-16 inverted dovetail HSS-Co **
14330140	NR	CUTTERS 14330 60° 16-12 inverted dovetail HSS-Co **
14330155	NR	CUTTERS 14330 60° 20-12 inverted dovetail HSS-Co **+
14330170	NR	CUTTERS 14330 60° 25-12 inverted dovetail HSS-Co **
