HSS-Co dovetail cutter

Dovetail cutter for form milling, HSS-Co5% with bright finish, UNI 8262A, DIN 1833A, ISO 3959. Cutting edge profile N for finishing medium-alloy materials, cylindrical shank; Weldon or threaded shank available upon request. End mill suitable to wotìrk in existing slot, not suitable for slotting.

Code: 14320

Brand: GB

Category: End mills

Type: Various form cutters

Applications: click here

Helix - Rake: None

Flutes Number: 10 12

Lengths: Not specified

Tool Material: HSS-Co

Use: Side

Coating: None

Flutes profile: N

Speed: normal

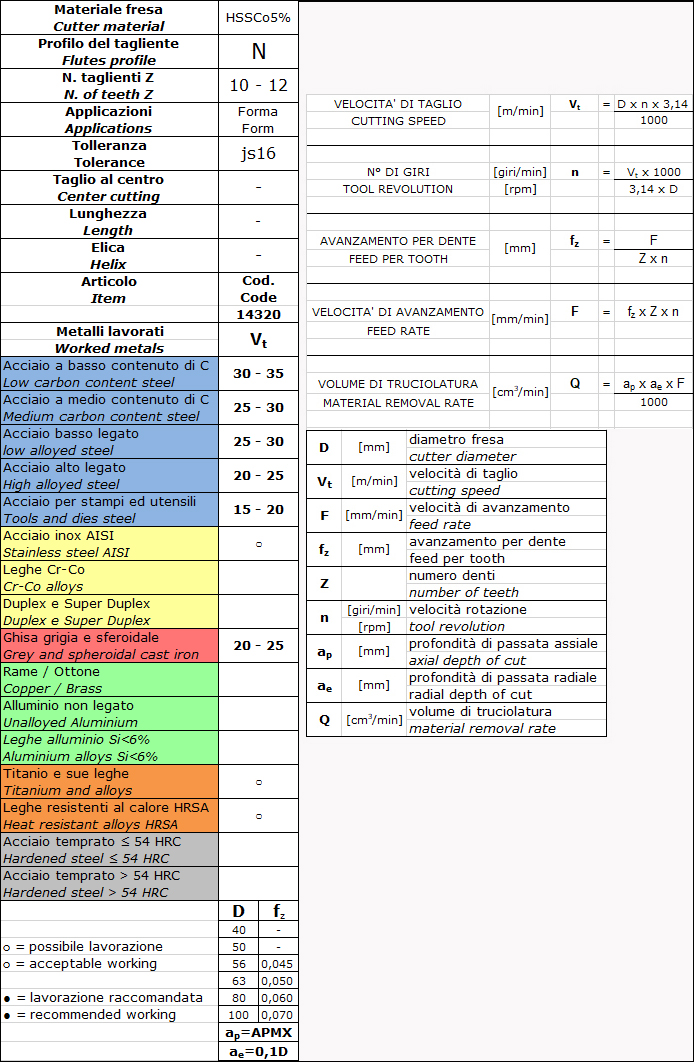

Order Print technical sheet

Articles
Data sheet

GB Code	UM	Description
14320080	NR	CUTTERS 14320 45° 16-12 dovetail HSS-Co
14320100	NR	CUTTERS 14320 45° 20-12 dovetail HSS-Co
14320115	NR	CUTTERS 14320 45° 25-12 dovetail HSS-Co
14320130	NR	CUTTERS 14320 45° 32-16 dovetail HSS-Co
14320145	NR	CUTTERS 14320 60° 16-12 dovetail HSS-Co
14320160	NR	CUTTERS 14320 60° 20-12 dovetail HSS-Co
14320175	NR	CUTTERS 14320 60° 25-12 dovetail HSS-Co
14320185	NR	CUTTERS 14320 60° 32-16 dovetail HSS-Co
