HM 2 flute long end mill, coated

3 flute shouldering end mill, solid carbide HM with Ti and Al based multi-coating Skin-up for every kind of materials. Cutting edge profile H for the machining of high-alloyed materials, long length, cylindrical shank; Weldon shank available upon request.

Code: 13623

Brand: GB

Category: End mills

Type: 2-3 cutting edges cutters

Applications: click here

Helix - Rake: 30°

Flutes Number: 3

Lengths: Long

Tool Material: HM

Use: Side/Face

Coating: Multi-coated

Flutes profile: H

Speed: normal

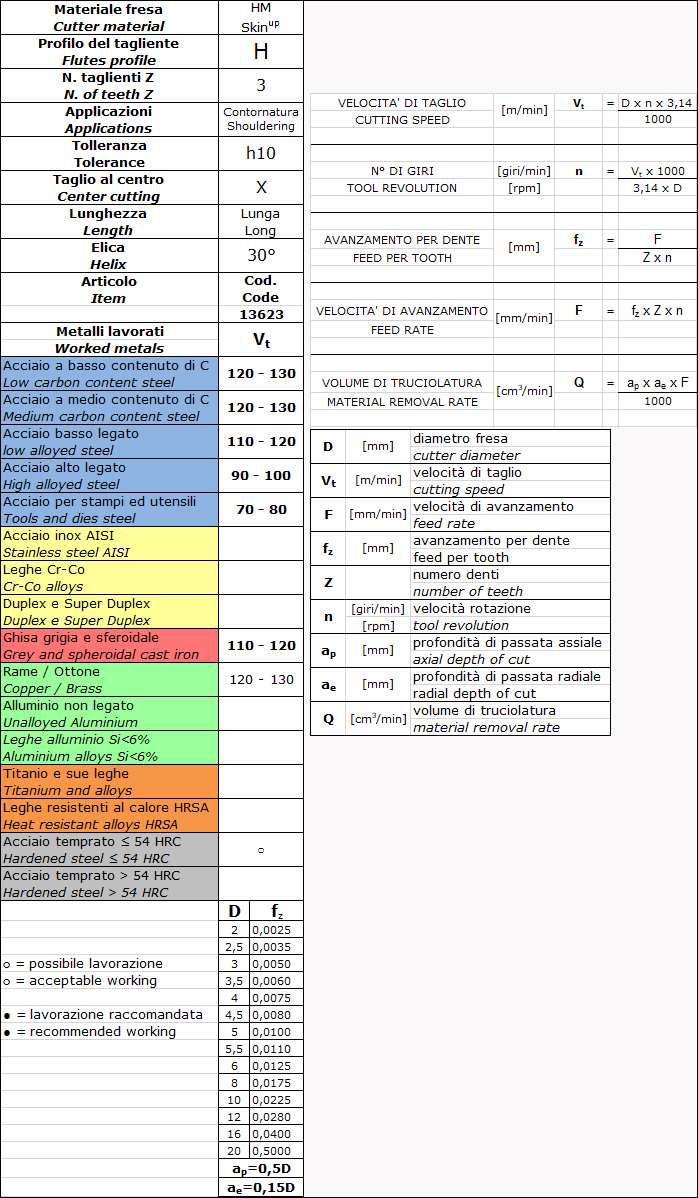

Order Print technical sheet

Articles
Data sheet

GB Code	UM	Description
13623030	NR	END MILLS 13623 3- 3 Z.3 Long H HM Skinup
13623040	NR	END MILLS 13623 4- 4 Z.3 Long H HM Skinup
13623050	NR	END MILLS 13623 5- 5 Z.3 Long H HM Skinup
13623060	NR	END MILLS 13623 6- 6 Z.3 Long H HM Skinup
13623080	NR	END MILLS 13623 8- 8 Z.3 Long H HM Skinup
13623100	NR	END MILLS 13623 10-10 Z.3 Long H HM Skinup
13623120	NR	END MILLS 13623 12-12 Z.3 Long H HM Skinup
