HSS-Co PM 2 flute extrashort end mill, coated

2 flute slot end mill with H7 tolerance, sintered HSS-Co8.5% with Ti and Al based multi-coating Skin for steel, cast, iron, inox, titanium, HRSA; UNI 8254, DIN 327B, ISO 1641/I. Cutting edge profile N for finishing medium-alloy materials, extra-short length, cylindrical shank; Weldon or threaded shank available upon request.

Code: 13513

Brand: GB

Category: End mills

Type: 2-3 cutting edges cutters

Applications: click here

Helix - Rake: 32°

Flutes Number: 2

Lengths: Extra short

Tool Material: HSS-Co Sint.

Use: Side/Face

Coating: Multi-coated

Flutes profile: N

Speed: normal

Order Print technical sheet

Articles

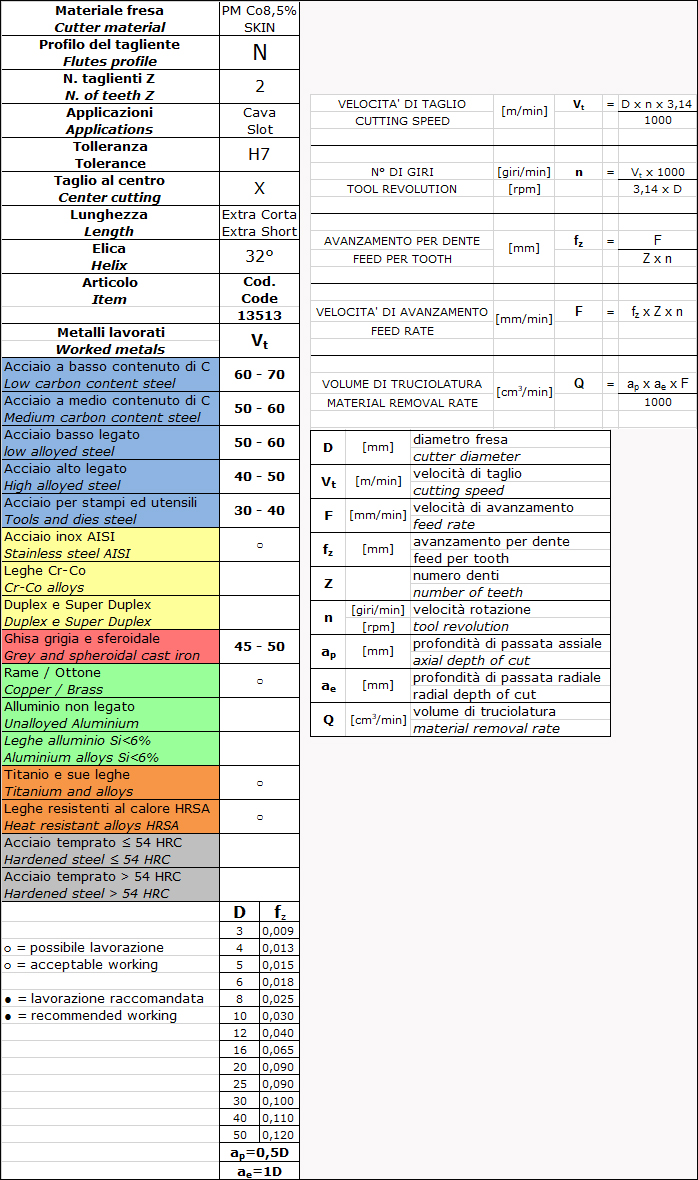

Data sheet

GB Code	UM	Description
13513010	NR	END MILLS 13513 1,0- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513015	NR	END MILLS 13513 1,5- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513020	NR	END MILLS 13513 2,0- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513025	NR	END MILLS 13513 2,5- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513030	NR	END MILLS 13513 3,0- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513040	NR	END MILLS 13513 4,0- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513050	NR	END MILLS 13513 5,0- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513060	NR	END MILLS 13513 6,0- 6 Z.2 ExtraShort N PMCo8,5 Skin
13513070	NR	END MILLS 13513 7,0-10 Z.2 ExtraShort N PMCo8,5 Skin
13513080	NR	END MILLS 13513 8,0-10 Z.2 ExtraShort N PMCo8,5 Skin
13513100	NR	END MILLS 13513 10,0-10 Z.2 ExtraShort N PMCo8,5 Skin
13513120	NR	END MILLS 13513 12,0-12 Z.2 ExtraShort N PMCo8,5 Skin
13513140	NR	END MILLS 13513 14,0-12 Z.2 ExtraShort N PMCo8,5 Skin
13513160	NR	END MILLS 13513 16,0-16 Z.2 ExtraShort N PMCo8,5 Skin
13513180	NR	END MILLS 13513 18,0-16 Z.2 ExtraShort N PMCo8,5 Skin
13513201	NR	END MILLS 13513 20,0-20 Z.2 ExtraShort N PMCo8,5 Skin
