HSS-Co PM 3 flute short end mill

3 flute shouldering end mill, sintered HSS-Co8,5% with bright finish, UNI 8254, DIN 327B, ISO 1641/I. Cutting edge profile N for finishing medium-alloy materials, short length, cylindrical shank; Weldon or threaded shank available upon request.

Code: 13540

Brand: GB

Category: End mills

Type: 2-3 cutting edges cutters

Applications: click here

Helix - Rake: 32°

Flutes Number: 3

Lengths: Short

Tool Material: HSS-Co Sint.

Use: Side/Face

Coating: None

Flutes profile: N

Speed: normal

Order Print technical sheet

Articles

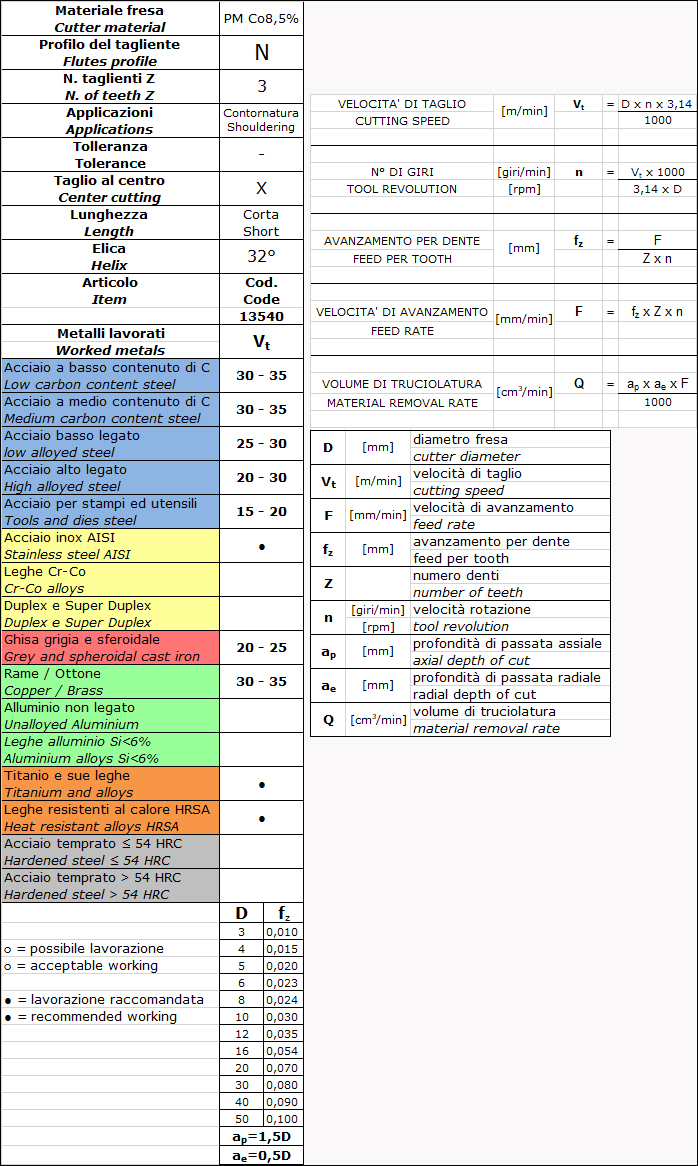

Data sheet

GB Code	UM	Description
13540020	NR	END MILLS 13540 2,0- 6 Z.3 Short N PMCo8,5
13540025	NR	END MILLS 13540 2,5- 6 Z.3 Short N PMCo8,5
13540030	NR	END MILLS 13540 3,0- 6 Z.3 Short N PMCo8,5
13540035	NR	END MILLS 13540 3,5- 6 Z.3 Short N PMCo8,5
13540040	NR	END MILLS 13540 4,0- 6 Z.3 Short N PMCo8,5
13540045	NR	END MILLS 13540 4,5- 6 Z.3 Short N PMCo8,5 *
13540050	NR	END MILLS 13540 5,0- 6 Z.3 Short N PMCo8,5
13540060	NR	END MILLS 13540 6,0- 6 Z.3 Short N PMCo8,5
13540070	NR	END MILLS 13540 7,0-10 Z.3 Short N PMCo8,5
13540080	NR	END MILLS 13540 8,0-10 Z.3 Short N PMCo8,5
13540090	NR	END MILLS 13540 9,0-10 Z.3 Short N PMCo8,5
13540100	NR	END MILLS 13540 10,0-10 Z.3 Short N PMCo8,5 +
13540120	NR	END MILLS 13540 12,0-12 Z.3 Short N PMCo8,5
13540130	NR	END MILLS 13540 13,0-12 Z.3 Short N PMCo8,5
13540140	NR	END MILLS 13540 14,0-12 Z.3 Short N PMCo8,5
13540160	NR	END MILLS 13540 16,0-16 Z.3 Short N PMCo8,5
13540180	NR	END MILLS 13540 18,0-16 Z.3 Short N PMCo8,5
13540200	NR	END MILLS 13540 20,0-16 Z.3 Short N PMCo8,5
