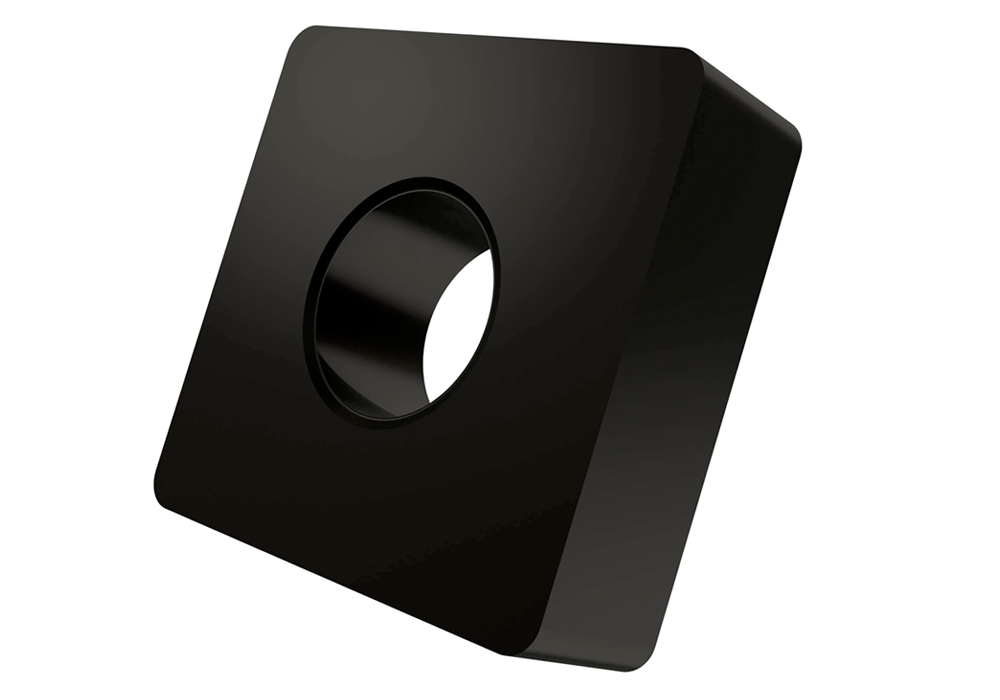

Insert SNMA T5305 for turning

Insert DORMER PRAMET SNMA T5305 negative with hole for turning. Flat geometry with neutral rake angle and rounded cutting edge, suitable for medium machining of cast iron and conditionally for hard materials, with continuous or slightly interrupted cutting. CVD grade T5305 with very high resistance to chemical wear and abrasion, suitable for finishing applications with high cutting speeds also for productive processing of treated and hardened materials. Main application ISO class K01-K15, secondary H15-H20.

Code: 18340

Brand: DORMER PRAMET

Category: Turning inserts

Type: Turning inserts

Applications: click here

Insert working mode:

Insert shape: S

Tool type: Insert-handlers and Inserts

Tool Material: HM

Coating: CVD

Blockage system: P+D

Orientation: -
