Insert VBMT-FM T9325 for turning
Cod. 18592

Insert VBMT-FM T9325 for turning

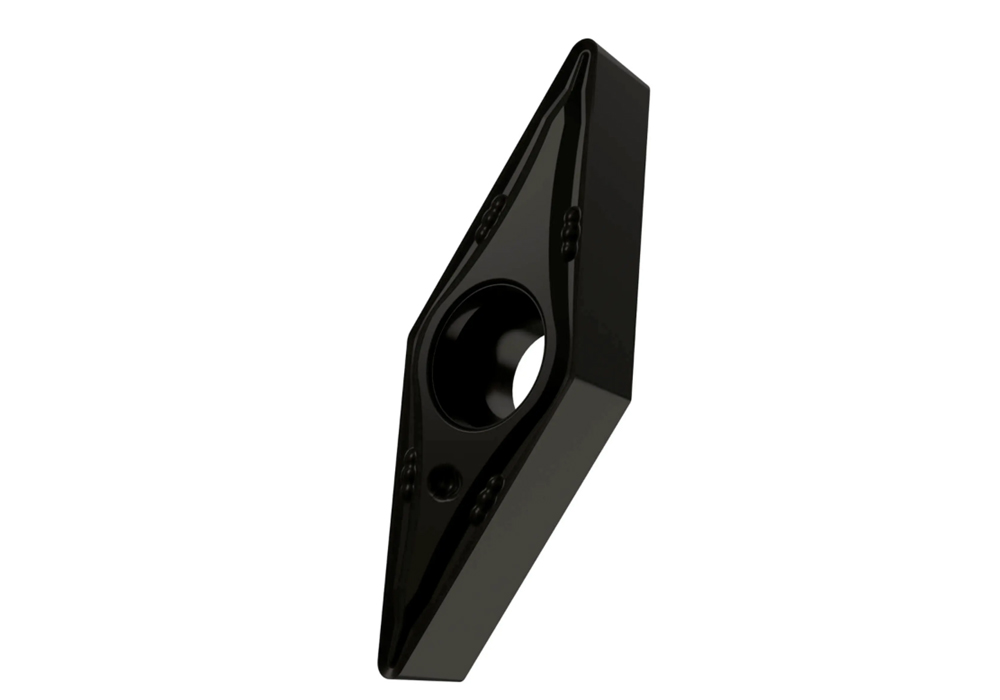

Insert DORMER PRAMET VBMT-FM T9325 positive with hole for turning. Versatile, first-choice geometry for semi-finishing steels, with continuous or slightly interrupted cut, also suitable for stainless steels and potentially cast irons; characterized by a positive rake angle and a positive narrow T-land, with a rounded cutting edge that can also be used with large overhangs. Extremely versatile CVD grade T9325 with high resistance to mechanical damage under adverse cutting conditions and with excellent wear resistance; the correct application of this material requires high cutting speeds. Main application ISO class P15-P35, M10-M30, secondary K15-K35.

Code: 18592
Brand: DORMER PRAMET
Category:
Type:
Applications: click here
Insert working mode:
Insert shape:
Tool type:
Tool Material:
Coating:
Blockage system:
Orientation:
GB Code UM Description Note
18592540 NR INSERTS TCMT 160404E-FM T9325 P25, M20 (K25) **+
18592580 NR INSERTS TCMT 160408E-FM T9325 P25, M20 (K25) **+

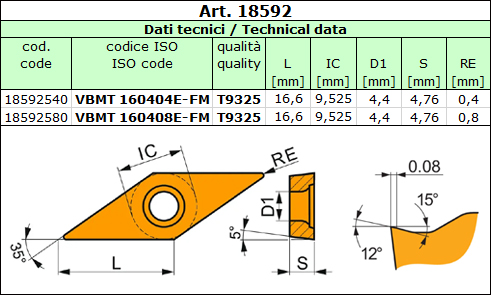

data sheet Insert VBMT-FM T9325 for turning
norms Insert VBMT-FM T9325 for turning

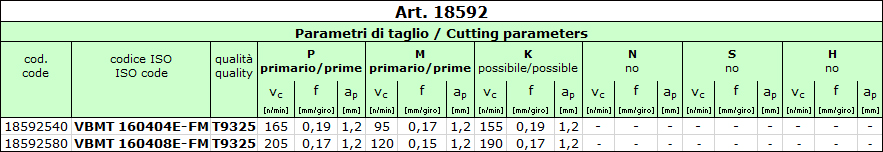

cutting parameters Inserto VBMT-FM T9325 per tornitura
