HM 4 flute short end mill, coated
Cod. 13715

HM 4 flute short end mill, coated

4 flute end mill for slotting and shouldering, solid carbide HM with Ti and Al based multi-coating Skin-up for every kind of materials; UNI DIN ISO 6528. Cutting edge profile H for the machining of high-alloyed materials, geometry with irregular division, from diameter mm 6,5 up different helices 30°/32° for machining a wide range of materials; short length, cylindrical shank; Weldon shank available upon request.

Code: 13715
Brand: GB
Category: End mills
Type: Finishing cutters
Applications: click here
Helix - Rake: 30°
Flutes Number: 4
Lengths: Short
Tool Material: HM
Use: Side/Face
Coating: Multi-coated
Flutes profile: H
Speed: normal
GB Code UM Description Note
13715020 NR END MILLS 13715 2- 2 Z.4 Short H HM Skinup
13715030 NR END MILLS 13715 3- 3 Z.4 Short H HM Skinup
13715040 NR END MILLS 13715 4- 4 Z.4 Short H HM Skinup
13715050 NR END MILLS 13715 5- 5 Z.4 Short H HM Skinup
13715060 NR END MILLS 13715 6- 6 Z.4 Short H HM Skinup
13715080 NR END MILLS 13715 8- 8 Z.4 Short H HM Skinup
13715100 NR END MILLS 13715 10-10 Z.4 Short H HM Skinup
13715120 NR END MILLS 13715 12-12 Z.4 Short H HM Skinup
13715140 NR END MILLS 13715 14-14 Z.4 Short H HM Skinup
13715160 NR END MILLS 13715 16-16 Z.4 Short H HM Skinup

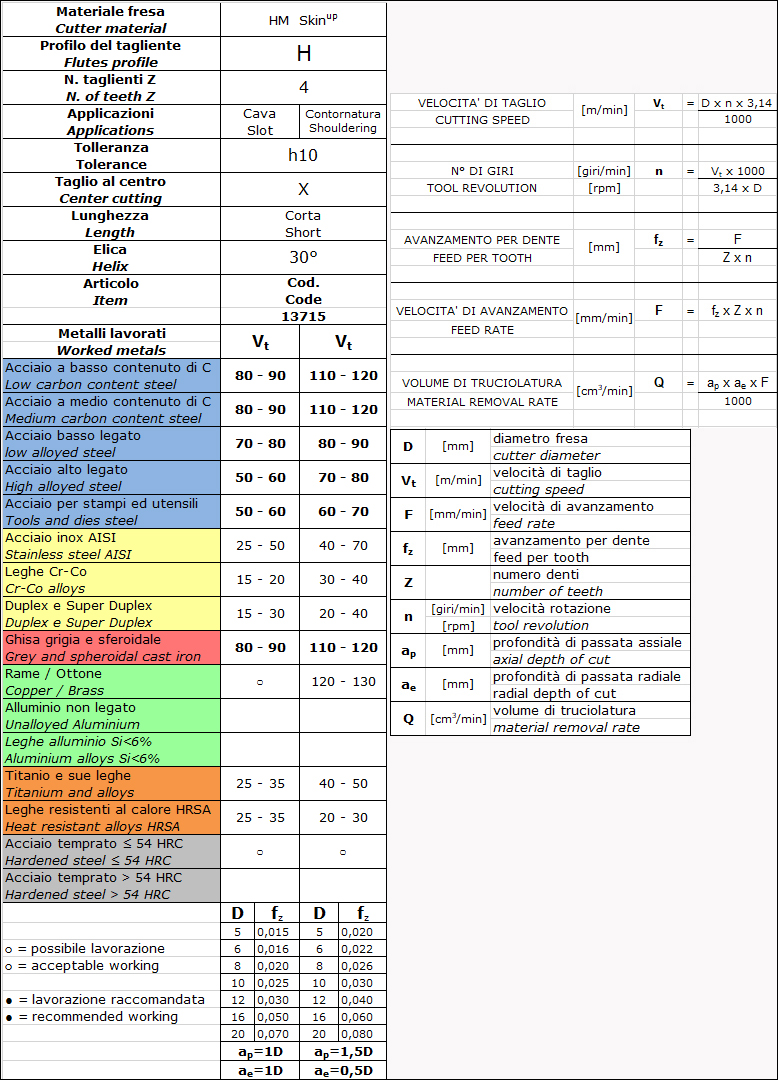

data sheet HM 4 flute short end mill, coated
