HSS-Co PM finishing short end mill 45°

Finishing shouldering end mill, sintered HSS-Co8,5% with bright finish, UNI 8244, DIN 844A, ISO 1641/I. Cutting edge profile N for finishing medium-alloy materials, 45° helix angle for machining a wide range of materials, short length, cylindrical shank; Weldon or threaded shank available upon request.

Code: 13690

Brand: GB

Category: End mills

Type: Finishing cutters

Applications: click here

Helix - Rake: 32°

Flutes Number: 4

Lengths: Short

Tool Material: HSS-Co Sint.

Use: Side

Coating: None

Flutes profile: N

Speed: normal

Order Print technical sheet

Articles

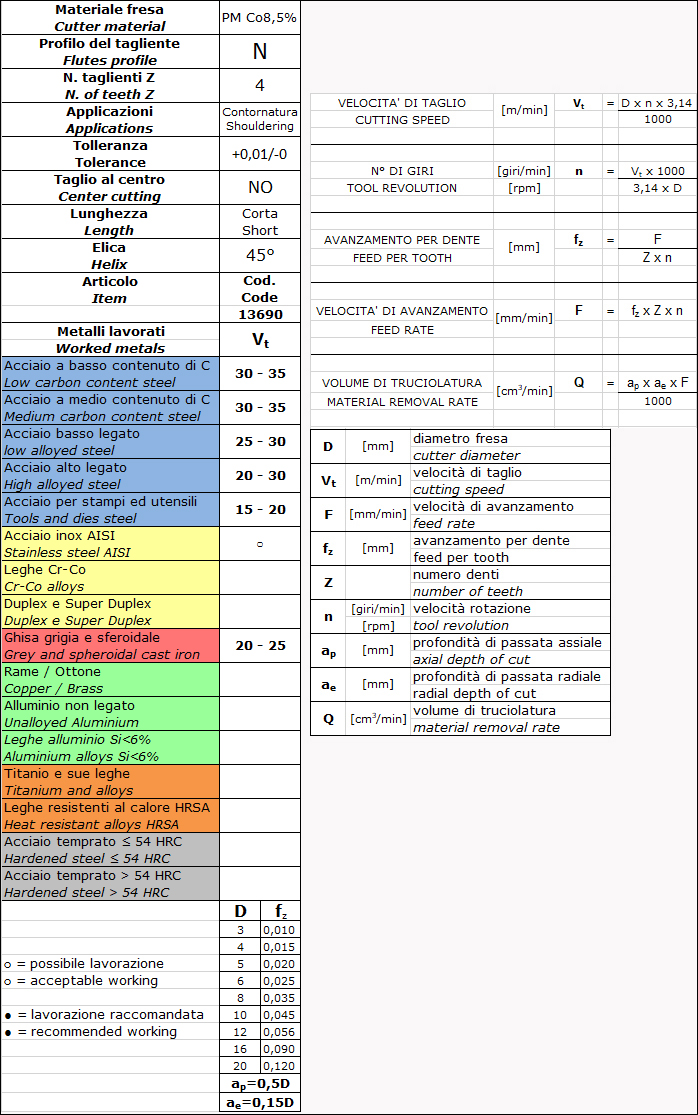

Data sheet

GB Code	UM	Description
13690040	NR	END MILLS 13690 4,0- 6 Z.4 Short N 45° PMCo8,5
13690050	NR	END MILLS 13690 5,0- 6 Z.4 Short N 45° PMCo8,5
13690060	NR	END MILLS 13690 6,0- 6 Z.4 Short N 45° PMCo8,5
13690080	NR	END MILLS 13690 8,0-10 Z.4 Short N 45° PMCo8,5
13690100	NR	END MILLS 13690 10,0-10 Z.4 Short N 45° PMCo8,5
13690120	NR	END MILLS 13690 12,0-12 Z.4 Short N 45° PMCo8,5
13690160	NR	END MILLS 13690 16,0-16 Z.4 Short N 45° PMCo8,5
13690200	NR	END MILLS 13690 20,0-20 Z.4 Short N 45° PMCo8,5
