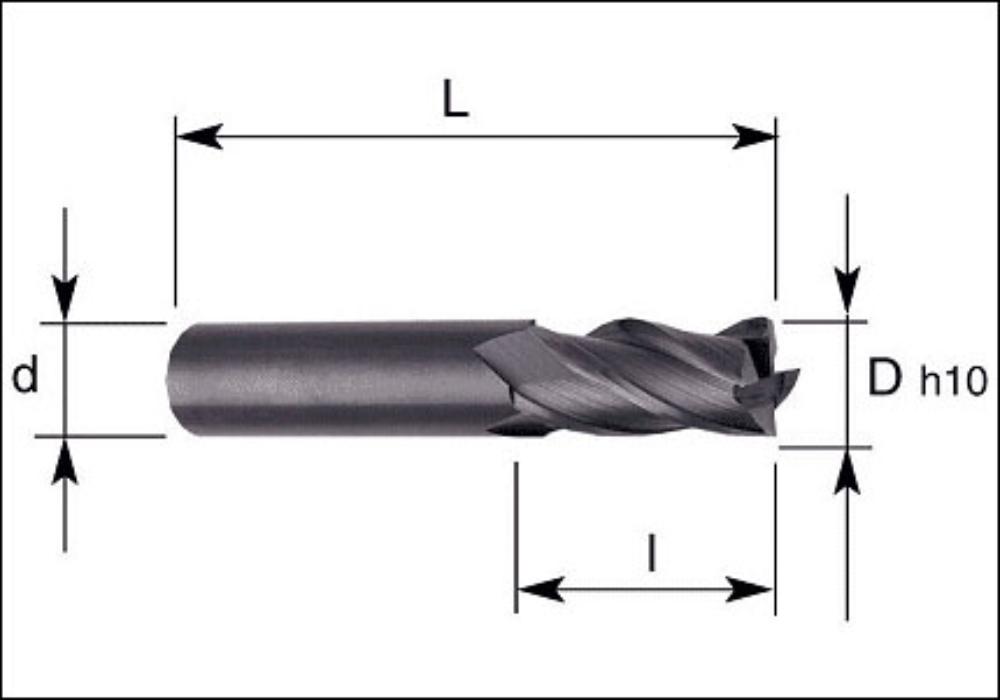

HM 4 flute short end mill

4 flute milling end mill for slotting and shouldering, solid carbide HM with bright finish; UNI DIN ISO 6528. Cutting edge profile H for the machining of high-alloyed materials, geometry with irregular division, from diameter mm 6,5 up different helices 30°/32° for machining a wide range of materials; short length, cylindrical shank; Weldon shank available upon request.

Code: 13711

Brand: GB

Category: End mills

Type: Finishing cutters

Applications: click here

Helix - Rake: 30°

Flutes Number: 4

Lengths: Short

Tool Material: HM

Use: Side/Face

Coating: None

Flutes profile: H

Speed: normal

Order Print technical sheet

Articles

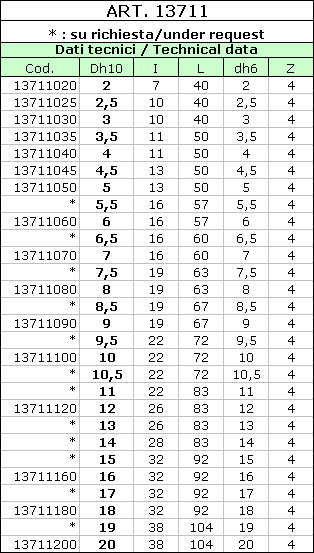

Data sheet

GB Code	UM	Description
13711020	NR	END MILLS 13711 2,0- 2,0 Z.4 Short H HM
13711025	NR	END MILLS 13711 2,5- 2,5 Z.4 Short H HM
13711030	NR	END MILLS 13711 3,0- 3,0 Z.4 Short H HM
13711035	NR	END MILLS 13711 3,5- 3,5 Z.4 Short H HM
13711040	NR	END MILLS 13711 4,0- 4,0 Z.4 Short H HM
13711045	NR	END MILLS 13711 4,5- 4,5 Z.4 Short H HM
13711050	NR	END MILLS 13711 5,0- 5,0 Z.4 Short H HM
13711060	NR	END MILLS 13711 6,0- 6,0 Z.4 Short H HM
13711070	NR	END MILLS 13711 7,0- 7,0 Z.4 Short H HM
13711080	NR	END MILLS 13711 8,0- 8,0 Z.4 Short H HM
13711090	NR	END MILLS 13711 9,0- 9,0 Z.4 Short H HM
13711100	NR	END MILLS 13711 10,0-10,0 Z.4 Short H HM
13711120	NR	END MILLS 13711 12,0-12,0 Z.4 Short H HM
13711140	NR	END MILLS 13711 14,0-14,0 Z.4 Short H HM
13711160	NR	END MILLS 13711 16,0-16,0 Z.4 Short H HM
13711180	NR	END MILLS 13711 18,0-18,0 Z.4 Short H HM
13711200	NR	END MILLS 13711 20,0-20,0 Z.4 Short H HM
