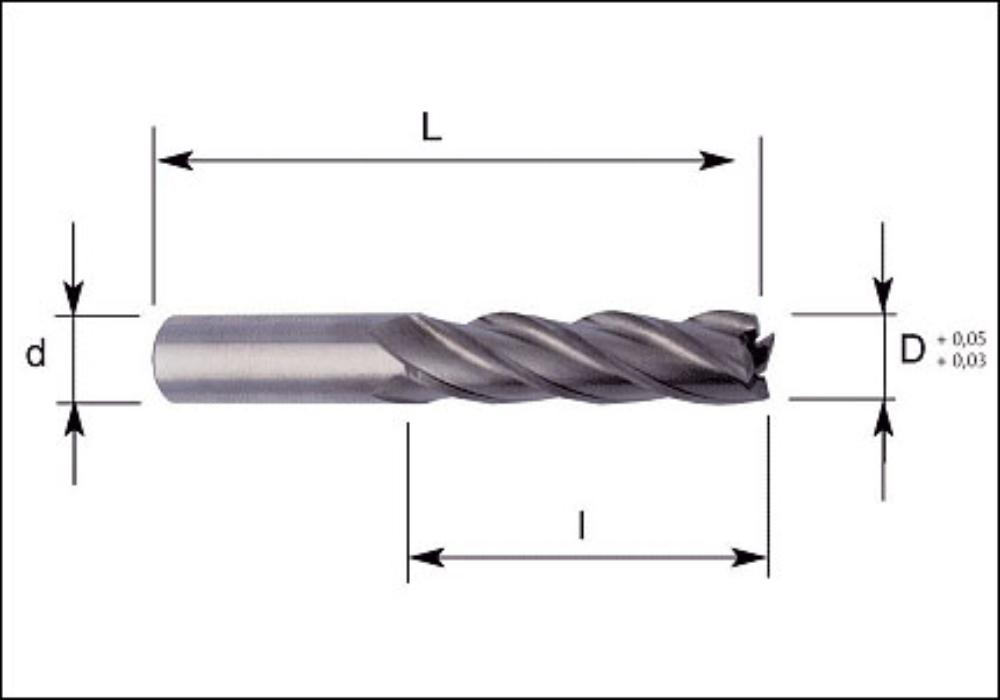

HSS-Co PM finishing long end mill, coated

Finishing shouldering end mill, sintered HSS-Co8,5% with Ti and Al based multi-coating Skin for steel, cast, iron, inox, titanium, HRSA; UNI 8244, DIN 844A, ISO 1641/I. Cutting edge profile N for finishing medium-alloy materials, long length, cylindrical shank; Weldon or threaded shank available upon request.

Code: 13680

Brand: GB

Category: End mills

Type: Finishing cutters

Applications: click here

Helix - Rake: 32°

Flutes Number: 4

Lengths: Long

Tool Material: HSS-Co Sint.

Use: Side

Coating: Multi-coated

Flutes profile: N

Speed: normal

Order Print technical sheet

Articles
Data sheet

GB Code	UM	Description
13680030	NR	END MILLS 13680 3- 6 Z.4 Long N PMCo8,5 Skin
13680040	NR	END MILLS 13680 4- 6 Z.4 Long N PMCo8,5 Skin
13680050	NR	END MILLS 13680 5- 6 Z.4 Long N PMCo8,5 Skin
13680060	NR	END MILLS 13680 6- 6 Z.4 Long N PMCo8,5 Skin
13680080	NR	END MILLS 13680 8-10 Z.4 Long N PMCo8,5 Skin
13680100	NR	END MILLS 13680 10-10 Z.4 Long N PMCo8,5 Skin
13680120	NR	END MILLS 13680 12-12 Z.4 Long N PMCo8,5 Skin
13680140	NR	END MILLS 13680 14-12 Z.4 Long N PMCo8,5 Skin
13680160	NR	END MILLS 13680 16-16 Z.4 Long N PMCo8,5 Skin
13680180	NR	END MILLS 13680 18-16 Z.4 Long N PMCo8,5 Skin
13680200	NR	END MILLS 13680 20-20 Z.4 Long N PMCo8,5 Skin
