HM HSC 2 flute ball-nosed short end mill, coated

2 flute ball-nosed end mill for finishing and semi-finishing, solid carbide HM HSC (High Speed Cutting) with Ti and Al based multi-coating Skin-3 for milling of hard and tough materials, particularly suitable for the processing of hardened steels. Cutting edge profile H for the machining of high-alloyed materials; short length, cylindrical shank.

Code: 14070

Brand: GB

Category: End mills

Type: High speed cutters

Applications: click here

Helix - Rake: None

Flutes Number: 2

Lengths: Short

Tool Material: HM

Use: Side/Face

Coating: Multi-coated

Flutes profile: H HSC

Speed: high speed

Order Print technical sheet

Articles

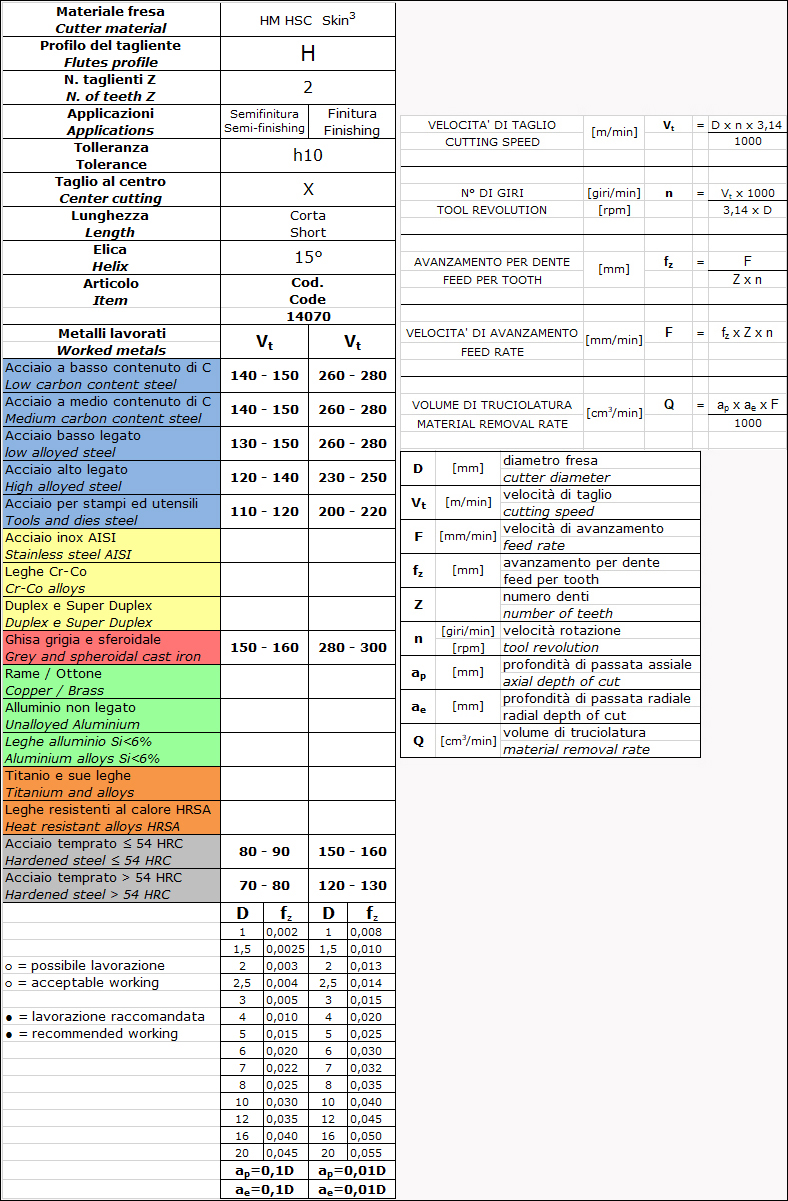

Data sheet

GB Code	UM	Description
14070020	NR	END MILLS 14070 2- 6 r 1,0 Z.2 Ball-nosed Short H HM HSC Skin3
14070030	NR	END MILLS 14070 3- 6 r 1,5 Z.2 Ball-nosed Short H HM HSC Skin3
14070040	NR	END MILLS 14070 4- 6 r 2,0 Z.2 Ball-nosed Short H HM HSC Skin3
14070050	NR	END MILLS 14070 5- 6 r 2,5 Z.2 Ball-nosed Short H HM HSC Skin3
14070060	NR	END MILLS 14070 6- 6 r 3,0 Z.2 Ball-nosed Short H HM HSC Skin3
14070080	NR	END MILLS 14070 8- 8 r 4,0 Z.2 Ball-nosed Short H HM HSC Skin3
14070100	NR	END MILLS 14070 10-10 r 5,0 Z.2 Ball-nosed Short H HM HSC Skin3
