HM HSC 4 flute toric long end mill, coated

4 flute toric end mill for slotting and shouldering, solid carbide HM HSC (High Speed Cutting) with Ti and Al based multi-coating Skin-3 for milling of hard and tough materials. Cutting edge profile H for the machining of high-alloyed materials; long and extra-long length, cylindrical shank; Weldon shank available upon request.

Code: 13960

Brand: GB

Category: End mills

Type: High speed cutters

Applications: click here

Helix - Rake: 25°

Flutes Number: 4

Lengths: Long

Tool Material: HM

Use: Side/Face

Coating: Multi-coated

Flutes profile: H HSC

Speed: high speed

Order Print technical sheet

Articles

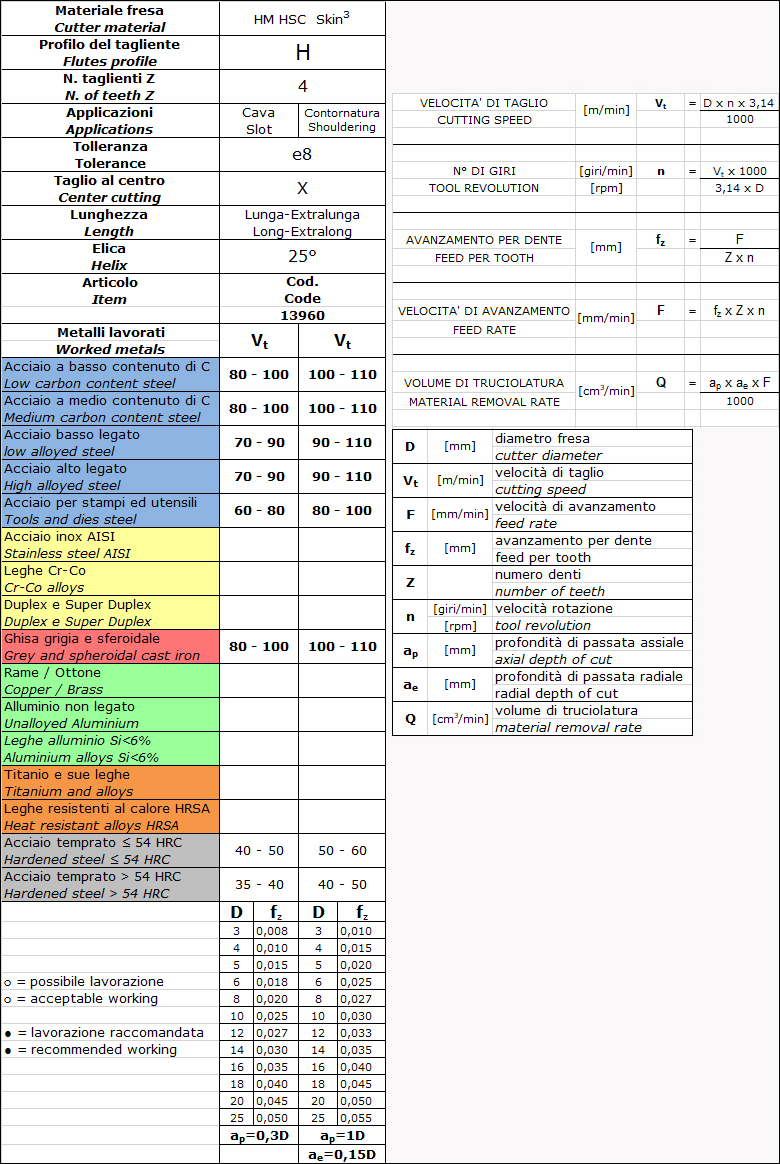

Data sheet

GB Code	UM	Description
13960030	NR	END MILLS 13960 3- 6 r 0,5 L57 Z.4 Toric Long H HM HSC Skin3
13960040	NR	END MILLS 13960 4- 6 r 0,5 L57 Z.4 Toric Long H HM HSC Skin3
13960050	NR	END MILLS 13960 5- 6 r 0,5 L57 Z.4 Toric Long H HM HSC Skin3
13960060	NR	END MILLS 13960 6- 6 r 1,0 L57 Z.4 Toric Long H HM HSC Skin3
13960061	NR	END MILLS 13960 6- 6 r 1,0 L70 Z.4 Toric ExtraLong H HM HSC Skin3 +
13960080	NR	END MILLS 13960 8- 8 r 1,0 L63 Z.4 Toric Long H HM HSC Skin3 +
13960081	NR	END MILLS 13960 8- 8 r 1,0 L80 Z.4 Toric ExtraLong H HM HSC Skin3 +
13960100	NR	END MILLS 13960 10-10 r 1,5 L72 Z.4 Toric Long H HM HSC Skin3
