HM HSC 4 flute short end mill, coated
Cod. 13955

HM HSC 4 flute short end mill, coated

4 flute end mill for slotting and shouldering, solid carbide HM HSC (High Speed Cutting) with Ti and Al based multi-coating Skin-3 for milling of hard and tough materials; UNI DIN ISO 6527. Cutting edge profile H for the machining of high-alloyed materials, geometry Double Action suitable for hardened materials; short length, cylindrical shank; Weldon shank available upon request.

Code: 13955
Brand: GB
Category: End mills
Type: High speed cutters
Applications: click here
Helix - Rake: None
Flutes Number: 4
Lengths: Short
Tool Material: HM
Use: Side/Face
Coating: Multi-coated
Flutes profile: H HSC
Speed: high speed
GB Code UM Description Note
13955040 NR END MILLS 13955 4- 6 L57 Z.4 Short H HM HSC Skin3
13955050 NR END MILLS 13955 5- 6 L57 Z.4 Short H HM HSC Skin3
13955060 NR END MILLS 13955 6- 6 L57 Z.4 Short H HM HSC Skin3
13955080 NR END MILLS 13955 8- 8 L63 Z.4 Short H HM HSC Skin3

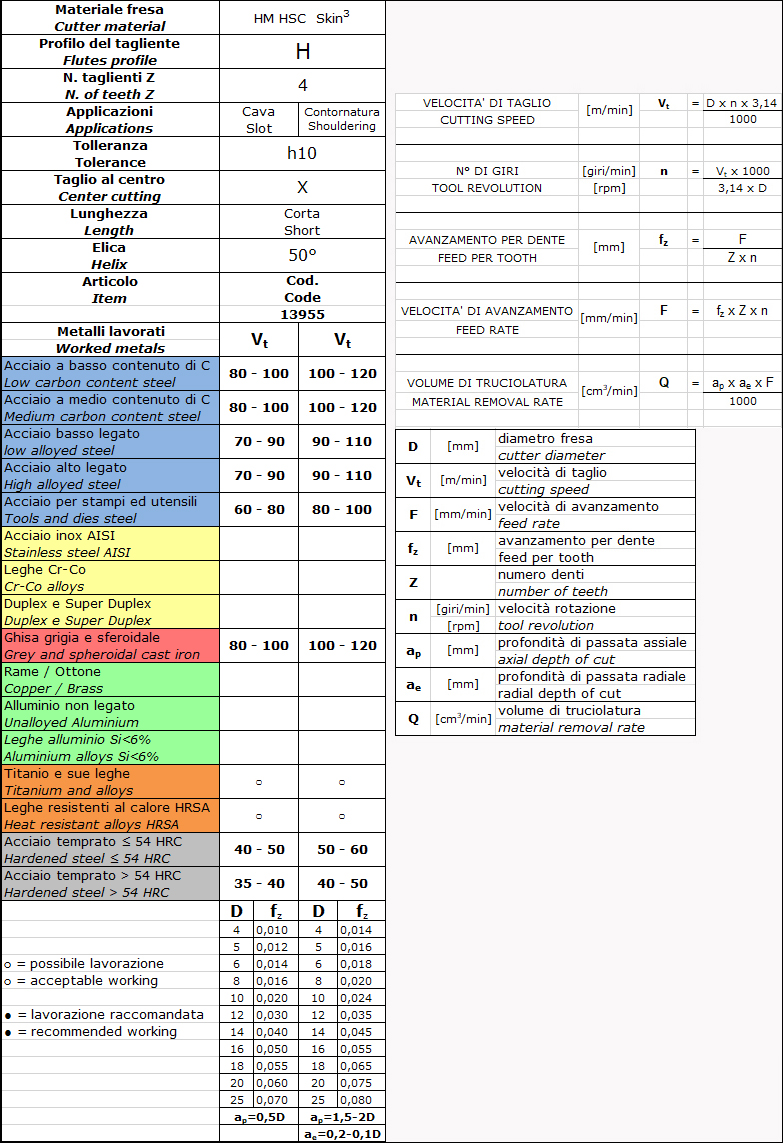

data sheet HM HSC 4 flute short end mill, coated
