HM 4 flute toric short end mill, coated

4 flute toric end mill for slotting and shouldering, solid carbide HM with Ti and Al based multi-coating Skin-up for every kind of materials. Cutting edge profile H for the machining of high-alloyed materials, geometry with irregular division, from diameter mm 8 up different helices 30°/32° for machining a wide range of materials; short length, cylindrical shank; Weldon shank available upon request.

Code: 13970

Brand: GB

Category: End mills

Type: High speed cutters

Applications: click here

Helix - Rake: 30°

Flutes Number: 4

Lengths: Short

Tool Material: HM

Use: Side/Face

Coating: Multi-coated

Flutes profile: H

Speed: high speed

Order Print technical sheet

Articles

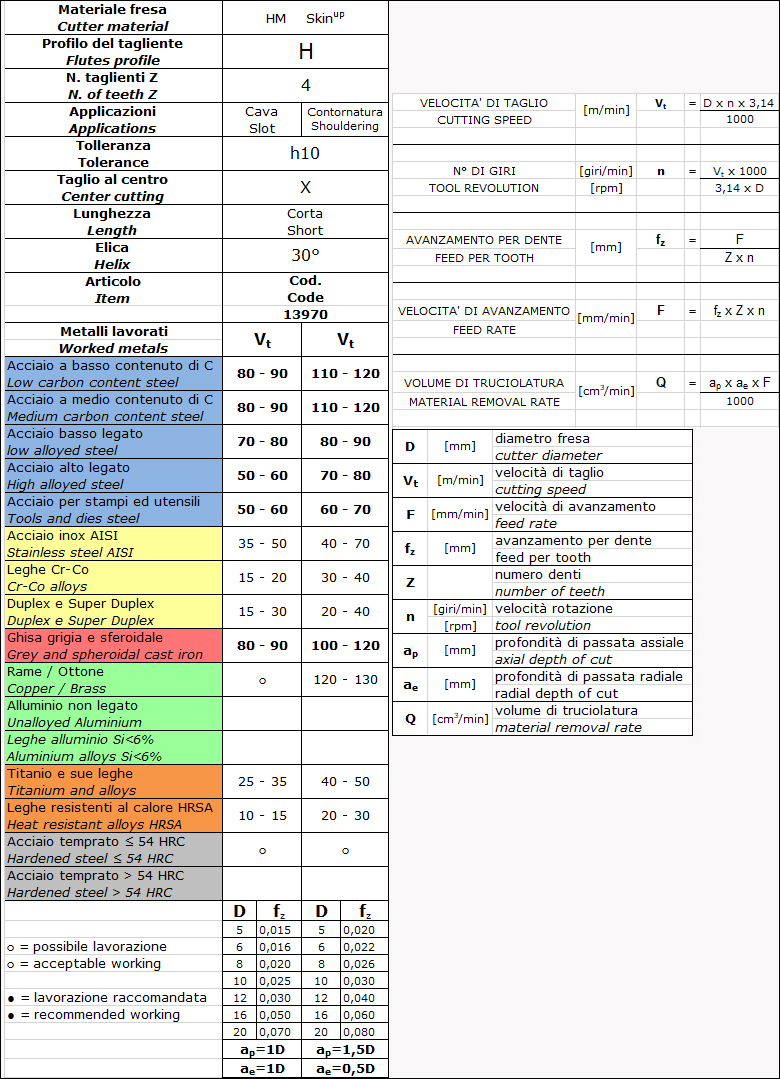

Data sheet

GB Code	UM	Description
13970020	NR	END MILLS 13970 2- 2 r 0,2 L40 Z.4 Toric Short H HM Skinup
13970030	NR	END MILLS 13970 2- 2 r 0,2 L40 Z.4 Toric Short H HM Skinup
13970040	NR	END MILLS 13970 4- 4 r 0,5 L50 Z.4 Toric Short H HM Skinup
13970050	NR	END MILLS 13970 5- 5 r 0,5 L50 Z.4 Toric Short H HM Skinup
13970060	NR	END MILLS 13970 6- 6 r 0,5 L57 Z.4 Toric Short H HM Skinup
13970080	NR	END MILLS 13970 8- 8 r 1,0 L63 Z.4 Toric Short H HM Skinup +
13970100	NR	END MILLS 13970 10-10 r 1,0 L72 Z.4 Toric Short H HM Skinup
13970120	NR	END MILLS 13970 12-12 r 1,0 L83 Z.4 Toric Short H HM Skinup
