Cod. 13632
HM flat extrashort micro end mill, coated
2 flute flat slot micro end mill, solid carbide HM HSC (High Speed Cutting) with Ti and Al based multi-coating Skin-3 for milling of hard and tough materials. Cutting edge profile H for the machining of high-alloyed materials, extrashort length, cylindrical shank.
Code: 13632
Brand: GB
Category: End mills
Type: Microcutter
Applications: click here
Helix - Rake: 30°-no
Flutes Number: 2
Lengths: Extra short
Tool Material: HM
Use: Side/Face
Coating: Multi-coated
Flutes profile: H
Speed: high speed

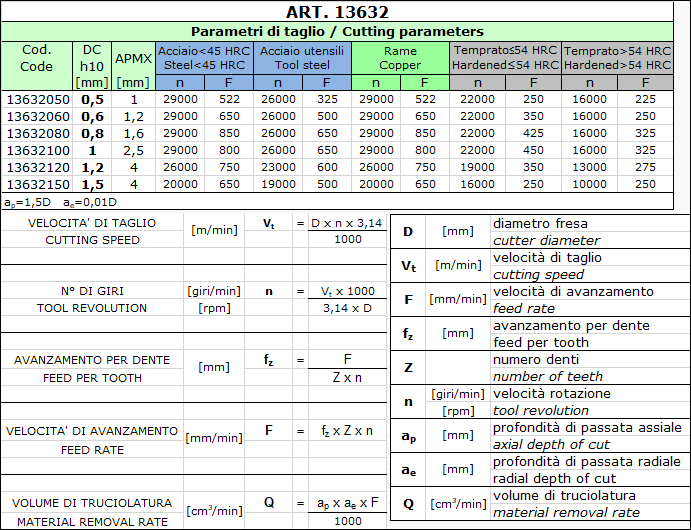

| GB Code | UM | Description | Note |
|---|---|---|---|
| 13632050 | NR | CUTTERS 13632 0,5- 3 HM+MS | |
| 13632060 | NR | CUTTERS 13632 0,6- 3 HM+MS | |
| 13632080 | NR | CUTTERS 13632 0,8- 3 HM+MS | |
| 13632100 | NR | CUTTERS 13632 1,0- 4 HM+MS | |
| 13632120 | NR | CUTTERS 13632 1,2- 4 HM+MS | |
| 13632150 | NR | CUTTERS 13632 1,5- 4 HM+MS |
