HM 2 flute ball-nosed short end mill, coated

2 flute ball-nosed end mill for roughing, solid carbide HM with Ti and Al based multi-coating Skin-up for every kind of materials. Cutting edge profile H for the machining of high-alloyed materials, short length, cylindrical shank; Weldon shank available upon request.

Code: 13874

Brand: GB

Category: End mills

Type: Conical and ball nose cutters

Applications: click here

Helix - Rake: 32°

Flutes Number: 2

Lengths: Short

Tool Material: HM

Use: Side/Face

Coating: Multi-coated

Flutes profile: H

Speed: normal

Order Print technical sheet

Articles

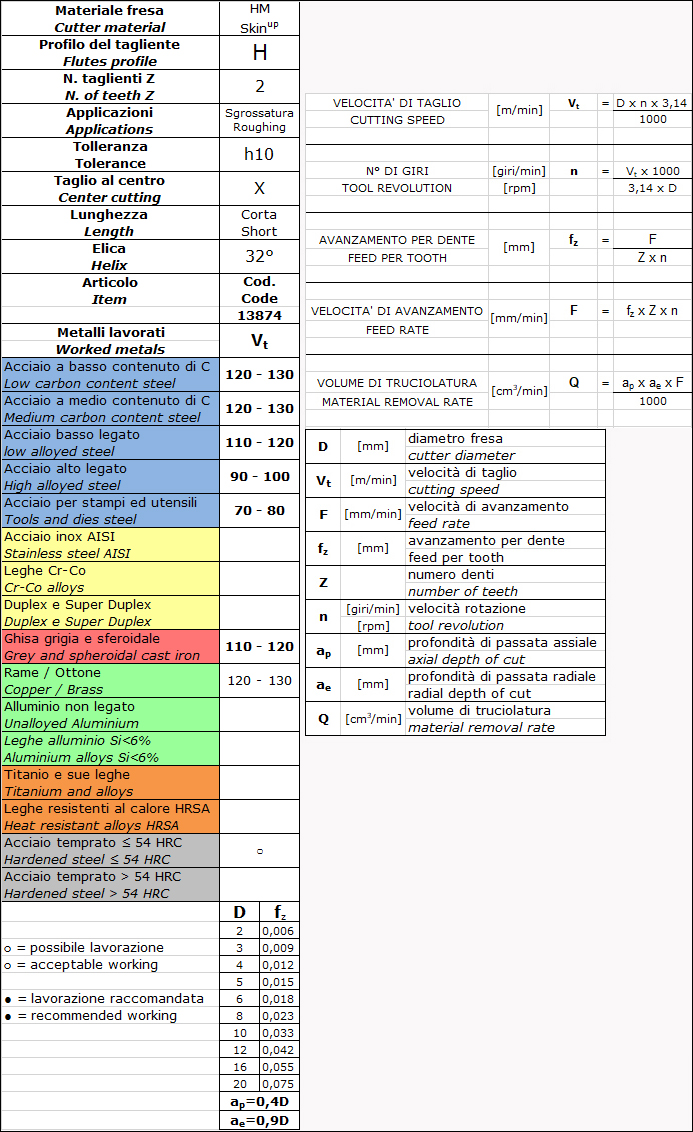

Data sheet

GB Code	UM	Description
13874020	NR	END MILLS 13874 2- 2 Z.2 Ball-nosed Short H HM Skinup
13874030	NR	END MILLS 13874 3- 3 Z.2 Ball-nosed Short H HM Skinup
13874040	NR	END MILLS 13874 4- 4 Z.2 Ball-nosed Short H HM Skinup
13874050	NR	END MILLS 13874 5- 5 Z.2 Ball-nosed Short H HM Skinup
13874060	NR	END MILLS 13874 6- 6 Z.2 Ball-nosed Short H HM Skinup
13874080	NR	END MILLS 13874 8- 8 Z.2 Ball-nosed Short H HM Skinup
13874100	NR	END MILLS 13874 10-10 Z.2 Ball-nosed Short H HM Skinup
13874120	NR	END MILLS 13874 12-12 Z.2 Ball-nosed Short H HM Skinup
