HM 4 flute ball-nosed short end mill, coated

4 flute ball-nosed end mill for roughing, solid carbide HM with Ti and Al based multi-coating Skin-up for every kind of materials. Cutting edge profile H for the machining of high-alloyed materials, short length, cylindrical shank; Weldon shank available upon request.

Code: 13884

Brand: GB

Category: End mills

Type: Conical and ball nose cutters

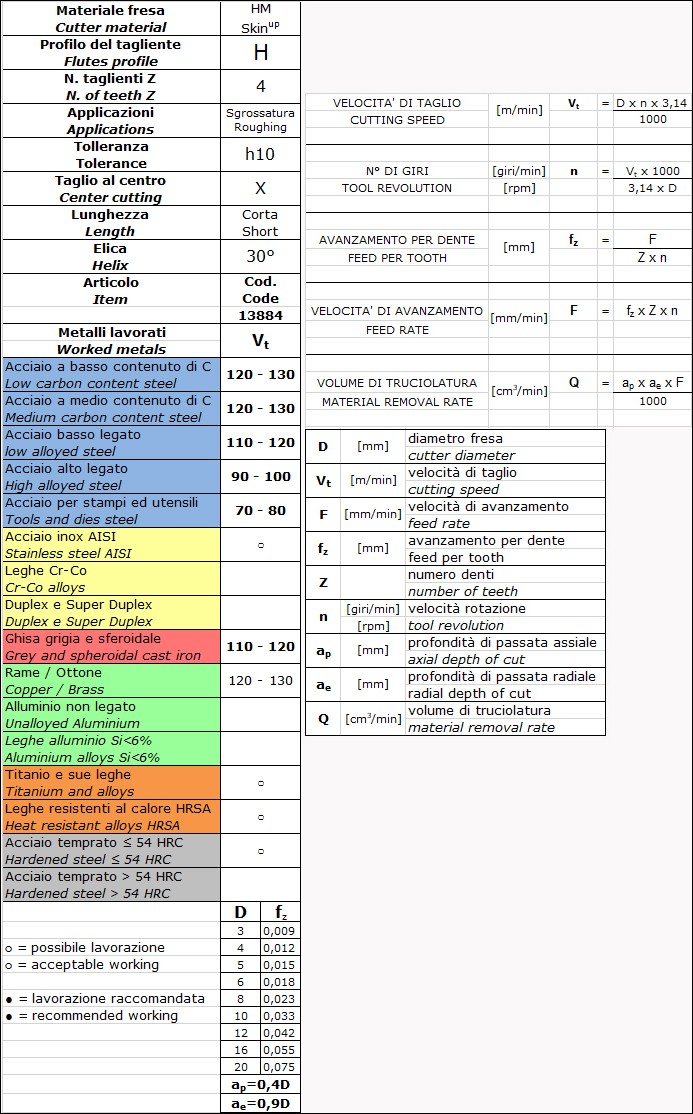

Applications: click here

Helix - Rake: 30°

Flutes Number: 4

Lengths: Short

Tool Material: HM

Use: Side/Face

Coating: Multi-coated

Flutes profile: H

Speed: normal

Order Print technical sheet

Articles
Data sheet

GB Code	UM	Description
13884030	NR	END MILLS 13884 3- 3 Z.4 Ball-nosed Short H HM Skinup
13884040	NR	END MILLS 13884 4- 4 Z.4 Ball-nosed Short H HM Skinup
13884050	NR	END MILLS 13884 5- 5 Z.4 Ball-nosed Short H HM Skinup
13884060	NR	END MILLS 13884 6- 6 Z.4 Ball-nosed Short H HM Skinup
13884080	NR	END MILLS 13884 8- 8 Z.4 Ball-nosed Short H HM Skinup
13884100	NR	END MILLS 13884 10-10 Z.4 Ball-nosed Short H HM Skinup
