HSS-Co PM 2 flute ball-nosed extrashort end mill, coated

2 flute ball-nosed end mill for profiling, sintered HSS-Co8.5% with Ti and Al based multi-coating Skin for steel, cast, iron, inox, titanium, HRSA, ISO 1641/I. Cutting edge profile N for finishing medium-alloy materials, extra-short length, cylindrical shank; Weldon or threaded shank available upon request.

Code: 13814

Brand: GB

Category: End mills

Type: Conical and ball nose cutters

Applications: click here

Helix - Rake: 32°

Flutes Number: 2

Lengths: Extra short

Tool Material: HSS-Co Sint.

Use: Side/Face

Coating: Multi-coated

Flutes profile: N

Speed: normal

Order Print technical sheet

Articles

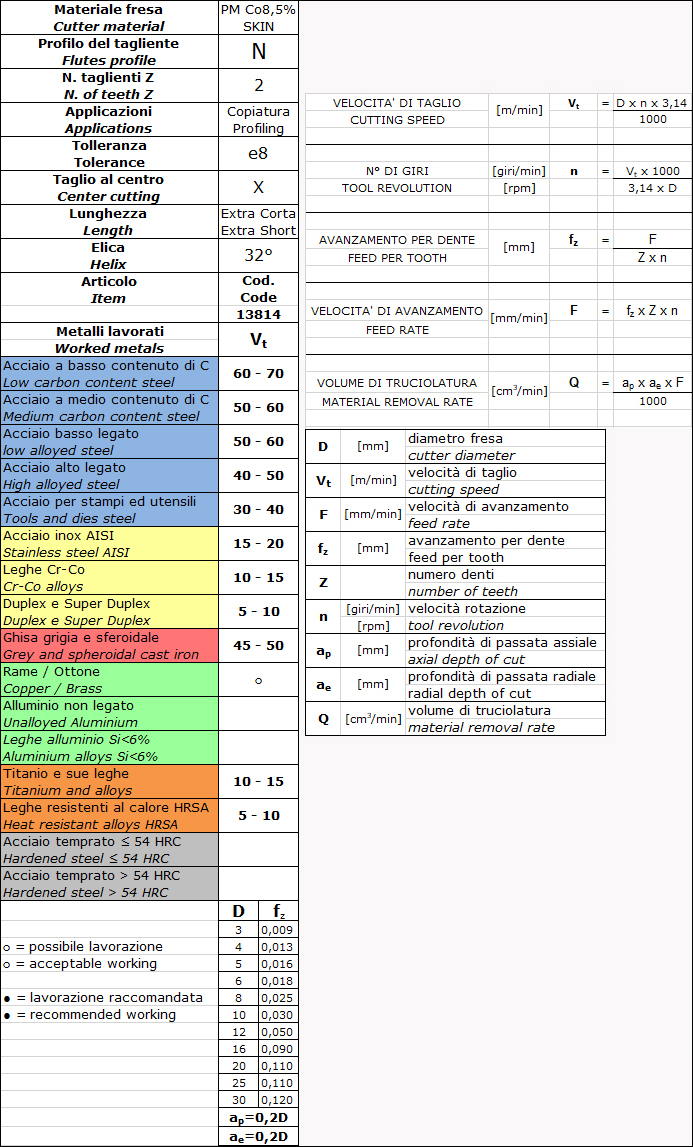

Data sheet

GB Code	UM	Description
13814020	NR	END MILLS 13814 2- 6 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814030	NR	END MILLS 13814 3- 6 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814040	NR	END MILLS 13814 4- 6 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814050	NR	END MILLS 13814 5- 6 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814060	NR	END MILLS 13814 6- 6 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814080	NR	END MILLS 13814 8-10 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814100	NR	END MILLS 13814 10-10 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814120	NR	END MILLS 13814 12-12 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814140	NR	END MILLS 13814 14-12 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814160	NR	END MILLS 13814 16-16 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin +
13814180	NR	END MILLS 13814 18-16 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
13814200	NR	END MILLS 13814 20-20 Z.2 Ball-nosed ExtraShort N PMCo8,5 Skin
