HM 2 flute ball-nosed short end mill

2 flute ball-nosed end mill for roughing, solid carbide HM with bright finish. Cutting edge profile H for the machining of high-alloyed materials, short length, cylindrical shank; Weldon shank available upon request.

Code: 13871

Brand: GB

Category: End mills

Type: Conical and ball nose cutters

Applications: click here

Helix - Rake: 32°

Flutes Number: 2

Lengths: Short

Tool Material: HM

Use: Side/Face

Coating: None

Flutes profile: H

Speed: normal

Order Print technical sheet

Articles

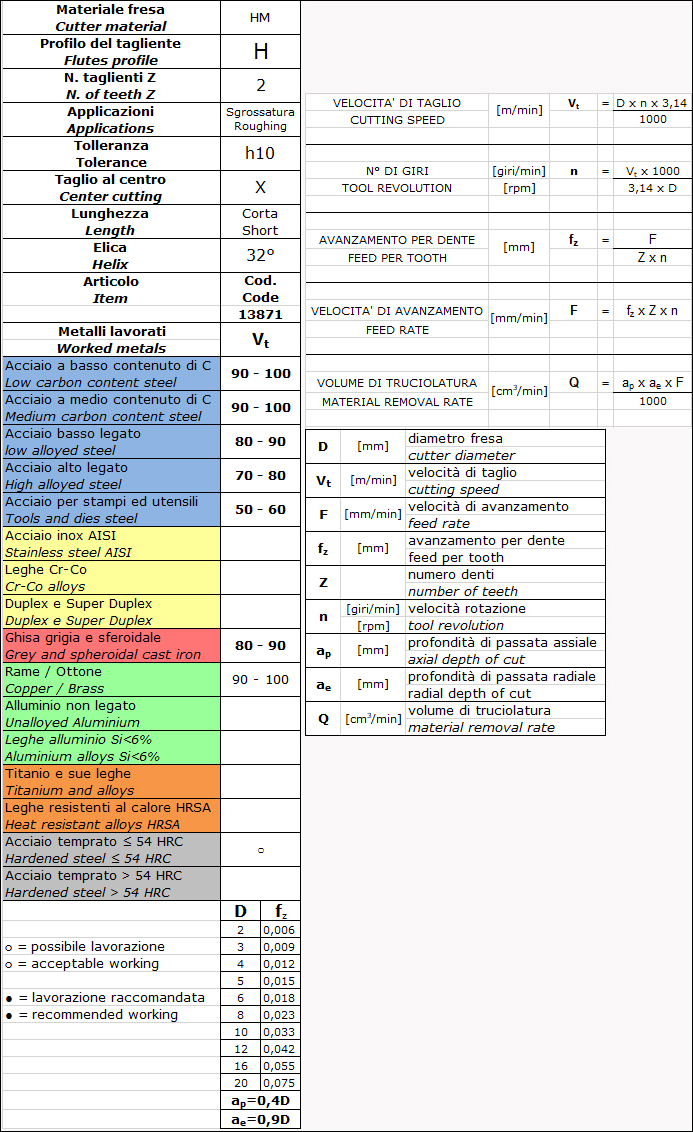

Data sheet

GB Code	UM	Description
13871020	NR	END MILLS 13871 2- 2 Z.2 Ball-nosed Short H HM
13871030	NR	END MILLS 13871 3- 3 Z.2 Ball-nosed Short H HM
13871040	NR	END MILLS 13871 4- 4 Z.2 Ball-nosed Short H HM
13871050	NR	END MILLS 13871 5- 5 Z.2 Ball-nosed Short H HM
13871060	NR	END MILLS 13871 6- 6 Z.2 Ball-nosed Short H HM
13871080	NR	END MILLS 13871 8- 8 Z.2 Ball-nosed Short H HM
13871090	NR	END MILLS 13871 9- 9 Z.2 Ball-nosed Short H HM
13871100	NR	END MILLS 13871 10-10 Z.2 Ball-nosed Short H HM
13871120	NR	END MILLS 13871 12-12 Z.2 Ball-nosed Short H HM
13871140	NR	END MILLS 13871 14-14 Z.2 Ball-nosed Short H HM
13871160	NR	END MILLS 13871 16-16 Z.2 Ball-nosed Short H HM
13871180	NR	END MILLS 13871 18-18 Z.2 Ball-nosed Short H HM
13871200	NR	END MILLS 13871 20-20 Z.2 Ball-nosed Short H HM
