HM 4 flute ball-nosed short end mill

4 flute ball-nosed end mill for roughing, solid carbide HM with bright finish. Cutting edge profile H for the machining of high-alloyed materials, short length, cylindrical shank; Weldon shank available upon request.

Code: 13881

Brand: GB

Category: End mills

Type: Conical and ball nose cutters

Applications: click here

Helix - Rake: 30°

Flutes Number: 4

Lengths: Short

Tool Material: HM

Use: Side/Face

Coating: None

Flutes profile: H

Speed: normal

Order Print technical sheet

Articles

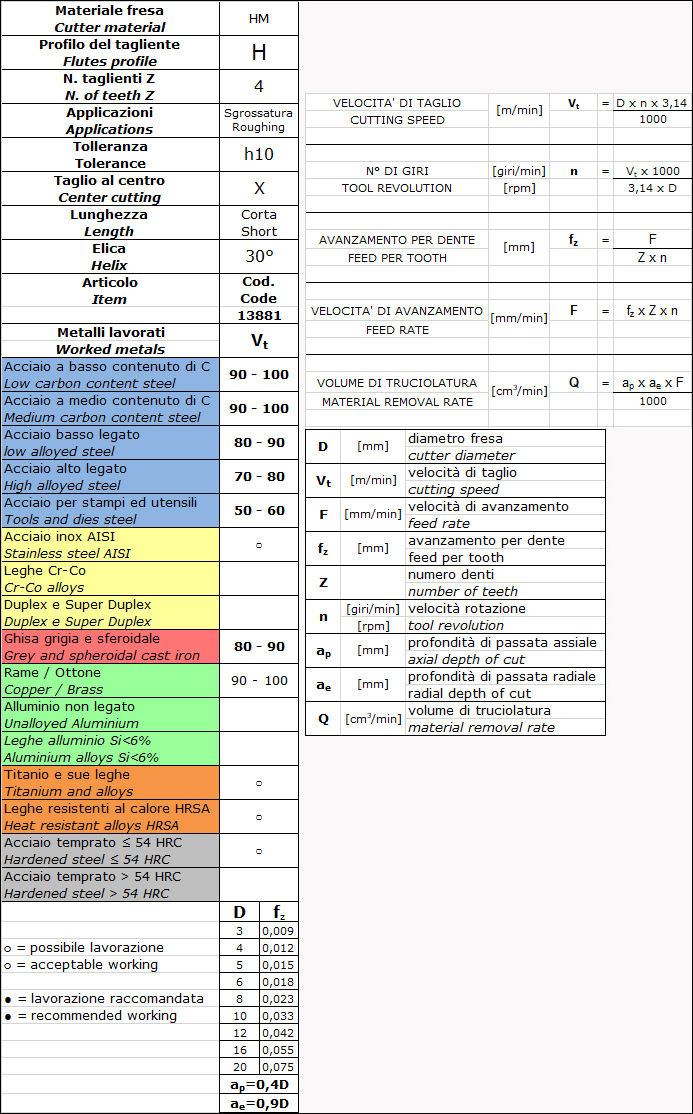

Data sheet

GB Code	UM	Description
13881020	NR	END MILLS 13881 2- 2 Z.4 Ball-nosed Short H HM
13881030	NR	END MILLS 13881 3- 3 Z.4 Ball-nosed Short H HM
13881040	NR	END MILLS 13881 4- 4 Z.4 Ball-nosed Short H HM
13881050	NR	END MILLS 13881 5- 5 Z.4 Ball-nosed Short H HM
13881060	NR	END MILLS 13881 6- 6 Z.4 Ball-nosed Short H HM
13881070	NR	END MILLS 13881 7- 7 Z.4 Ball-nosed Short H HM
13881080	NR	END MILLS 13881 8- 8 Z.4 Ball-nosed Short H HM
13881090	NR	END MILLS 13881 9- 9 Z.4 Ball-nosed Short H HM
13881100	NR	END MILLS 13881 10-10 Z.4 Ball-nosed Short H HM
13881110	NR	END MILLS 13881 11-11 Z.4 Ball-nosed Short H HM **+
13881120	NR	END MILLS 13881 12-12 Z.4 Ball-nosed Short H HM
13881140	NR	END MILLS 13881 14-14 Z.4 Ball-nosed Short H HM
