Punta extralunga HSS DIN 1869, tipo FN, nitrurata

Cod. 11465
Punta extralunga HSS DIN 1869, tipo FN, nitrurata

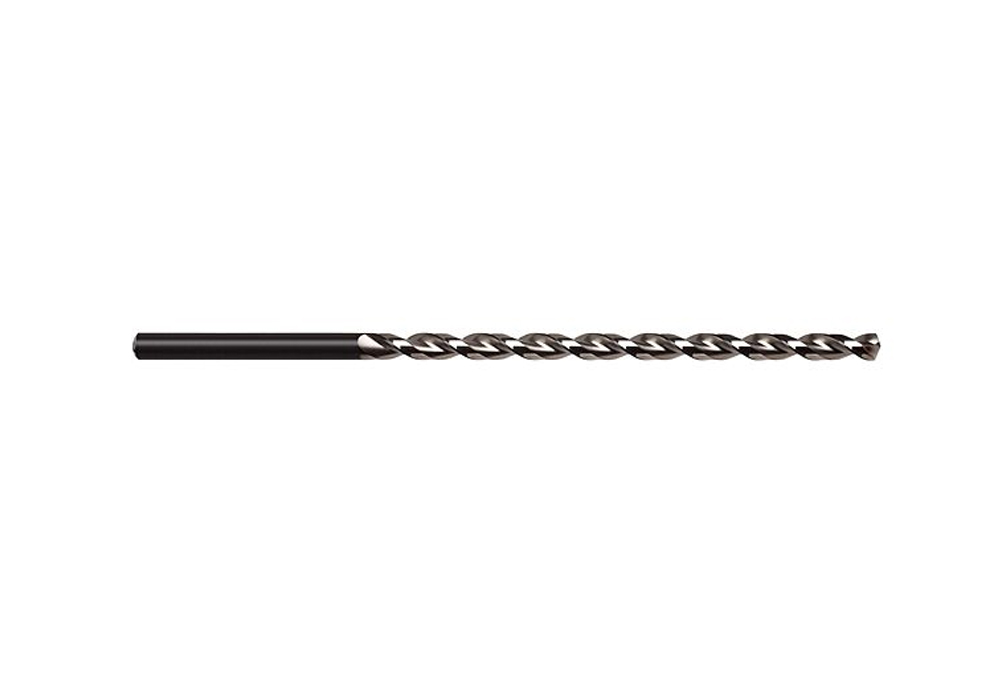

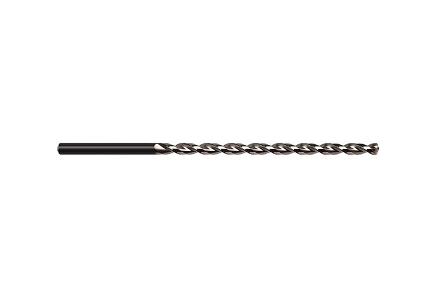

Punta elicoidale extralunga 81440 Hartner DIN 1869, HSS con superficie lucida fino al diametro mm 2,35, fasi nitrurate dal diametro mm 2,36 in poi, tipo FN con scanalature ampliate per materiali aggressivi a truciolo lungo. Punta per uso generale per foratura profonda, per acciaio, ghisa e altri materiali con resistenza a trazione fino a 1000 N/mm²; non raccomandata per acciai al nichel-cromo, al vanadio e simili.

Codice: 11465
Marca: Hartner
Categoria: Punte
Tipologia: Punte extralunghe in HSS/HSS-Co
Applicazioni: clicca qui
Orientamento elica: destra
Gambo: Cilindrico
Lubrificazione:
Lunghezze: Extra lunga
Materiale utensile: HSS
Tolleranza: h8
Ricopertura: Nitrurata
Angolo al vertice: 130°
Forma punte: DIN 1869

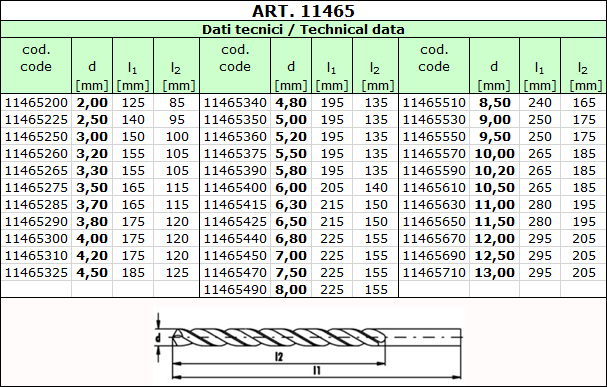

Cod. GB UM Descrizione Nota
11465200 NR PUNTE 81440 2,00 ExtraLunghe DIN1869 FN HSS
11465225 NR PUNTE 81440 2,50 ExtraLunghe DIN1869 FN HSS nit
11465250 NR PUNTE 81440 3,00 ExtraLunghe DIN1869 FN HSS nit
11465260 NR PUNTE 81440 3,20 ExtraLunghe DIN1869 FN HSS nit
11465265 NR PUNTE 81440 3,30 ExtraLunghe DIN1869 FN HSS nit
11465275 NR PUNTE 81440 3,50 ExtraLunghe DIN1869 FN HSS nit +
11465285 NR PUNTE 81440 3,70 ExtraLunghe DIN1869 FN HSS nit
11465290 NR PUNTE 81440 3,80 ExtraLunghe DIN1869 FN HSS nit
11465300 NR PUNTE 81440 4,00 ExtraLunghe DIN1869 FN HSS nit
11465310 NR PUNTE 81440 4,20 ExtraLunghe DIN1869 FN HSS nit
11465325 NR PUNTE 81440 4,50 ExtraLunghe DIN1869 FN HSS nit
11465340 NR PUNTE 81440 4,80 ExtraLunghe DIN1869 FN HSS nit
11465350 NR PUNTE 81440 5,00 ExtraLunghe DIN1869 FN HSS nit
11465360 NR PUNTE 81440 5,20 ExtraLunghe DIN1869 FN HSS nit
11465375 NR PUNTE 81440 5,50 ExtraLunghe DIN1869 FN HSS nit +
11465390 NR PUNTE 81440 5,80 ExtraLunghe DIN1869 FN HSS nit
11465400 NR PUNTE 81440 6,00 ExtraLunghe DIN1869 FN HSS nit
11465415 NR PUNTE 81440 6,30 ExtraLunghe DIN1869 FN HSS nit
11465425 NR PUNTE 81440 6,50 ExtraLunghe DIN1869 FN HSS nit
11465440 NR PUNTE 81440 6,80 ExtraLunghe DIN1869 FN HSS nit
11465450 NR PUNTE 81440 7,00 ExtraLunghe DIN1869 FN HSS nit
11465470 NR PUNTE 81440 7,50 ExtraLunghe DIN1869 FN HSS nit
11465490 NR PUNTE 81440 8,00 ExtraLunghe DIN1869 FN HSS nit
11465510 NR PUNTE 81440 8,50 ExtraLunghe DIN1869 FN HSS nit
11465530 NR PUNTE 81440 9,00 ExtraLunghe DIN1869 FN HSS nit
11465550 NR PUNTE 81440 9,50 ExtraLunghe DIN1869 FN HSS nit
11465570 NR PUNTE 81440 10,00 ExtraLunghe DIN1869 FN HSS nit
11465590 NR PUNTE 81440 10,20 ExtraLunghe DIN1869 FN HSS nit
11465610 NR PUNTE 81440 10,50 ExtraLunghe DIN1869 FN HSS nit
11465630 NR PUNTE 81440 11,00 ExtraLunghe DIN1869 FN HSS nit
11465650 NR PUNTE 81440 11,50 ExtraLunghe DIN1869 FN HSS nit
11465670 NR PUNTE 81440 12,00 ExtraLunghe DIN1869 FN HSS nit
11465690 NR PUNTE 81440 12,50 ExtraLunghe DIN1869 FN HSS nit
11465710 NR PUNTE 81440 13,00 ExtraLunghe DIN1869 FN HSS nit

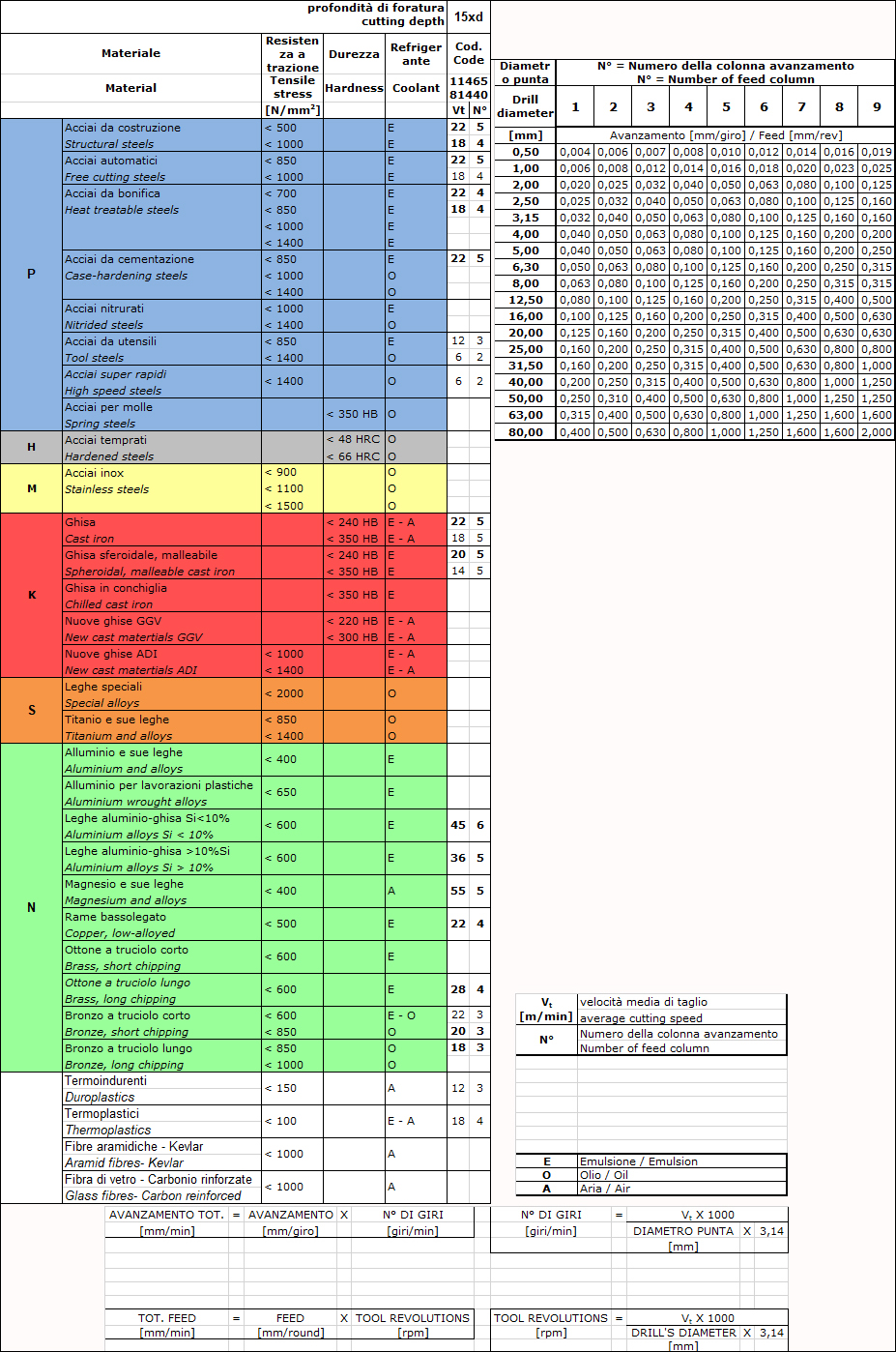

scheda tecnica Punta extralunga HSS DIN 1869, tipo FN, nitrurata
