Punta lunga HSS-Co DIN 340, tipo FN, nitrurata

Cod. 11436
Punta lunga HSS-Co DIN 340, tipo FN, nitrurata

Punta elicoidale lunga 81341 Hartner DIN 340, HSS al cobalto con superficie lucida fino al diametro mm 2,35, fasi nitrurate dal diametro mm 2,36 in poi, tipo FN con massima resistenza all'usura e scanalature ampliate per materiali aggressivi a truciolo lungo. Punta per uso generale per acciai e ghisa grigia oltre gli 800 N/mm², acciai per lavorazioni a caldo e a freddo, acciai per cuscinetti, acciai altamente legati, acciai da bonifica e da cementazione.

Codice: 11436
Marca: Hartner
Categoria: Punte
Tipologia: Punte lunghe in HSS/HSS-Co
Applicazioni: clicca qui
Orientamento elica: destra
Gambo: Cilindrico
Lubrificazione:
Lunghezze: Lunga
Materiale utensile: HSS
Tolleranza: h8
Ricopertura: Nitrurata
Angolo al vertice: 130°
Forma punte: DIN 340

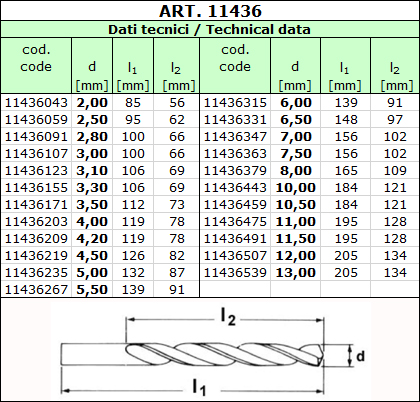

Cod. GB UM Descrizione Nota
11436043 NR PUNTE 81341 2,00 Lunghe DIN340 FN HSS-Co
11436059 NR PUNTE 81341 2,50 Lunghe DIN340 FN HSS-Co Nit
11436091 NR PUNTE 81341 2,80 Lunghe DIN340 FN HSS-Co Nit
11436107 NR PUNTE 81341 3,00 Lunghe DIN340 FN HSS-Co Nit
11436123 NR PUNTE 81341 3,10 Lunghe DIN340 FN HSS-Co Nit
11436155 NR PUNTE 81341 3,30 Lunghe DIN340 FN HSS-Co Nit
11436171 NR PUNTE 81341 3,50 Lunghe DIN340 FN HSS-Co Nit
11436203 NR PUNTE 81341 4,00 Lunghe DIN340 FN HSS-Co Nit
11436209 NR PUNTE 81341 4,20 Lunghe DIN340 FN HSS-Co Nit
11436219 NR PUNTE 81341 4,50 Lunghe DIN340 FN HSS-Co Nit
11436235 NR PUNTE 81341 5,00 Lunghe DIN340 FN HSS-Co Nit
11436267 NR PUNTE 81341 5,50 Lunghe DIN340 FN HSS-Co Nit
11436315 NR PUNTE 81341 6,00 Lunghe DIN340 FN HSS-Co Nit
11436331 NR PUNTE 81341 6,50 Lunghe DIN340 FN HSS-Co Nit
11436347 NR PUNTE 81341 7,00 Lunghe DIN340 FN HSS-Co Nit
11436363 NR PUNTE 81341 7,50 Lunghe DIN340 FN HSS-Co Nit
11436379 NR PUNTE 81341 8,00 Lunghe DIN340 FN HSS-Co Nit
11436443 NR PUNTE 81341 10,00 Lunghe DIN340 FN HSS-Co Nit
11436459 NR PUNTE 81341 10,50 Lunghe DIN340 FN HSS-Co Nit
11436475 NR PUNTE 81341 11,00 Lunghe DIN340 FN HSS-Co Nit
11436491 NR PUNTE 81341 11,50 Lunghe DIN340 FN HSS-Co Nit
11436507 NR PUNTE 81341 12,00 Lunghe DIN340 FN HSS-Co Nit
11436539 NR PUNTE 81341 13,00 Lunghe DIN340 FN HSS-Co Nit

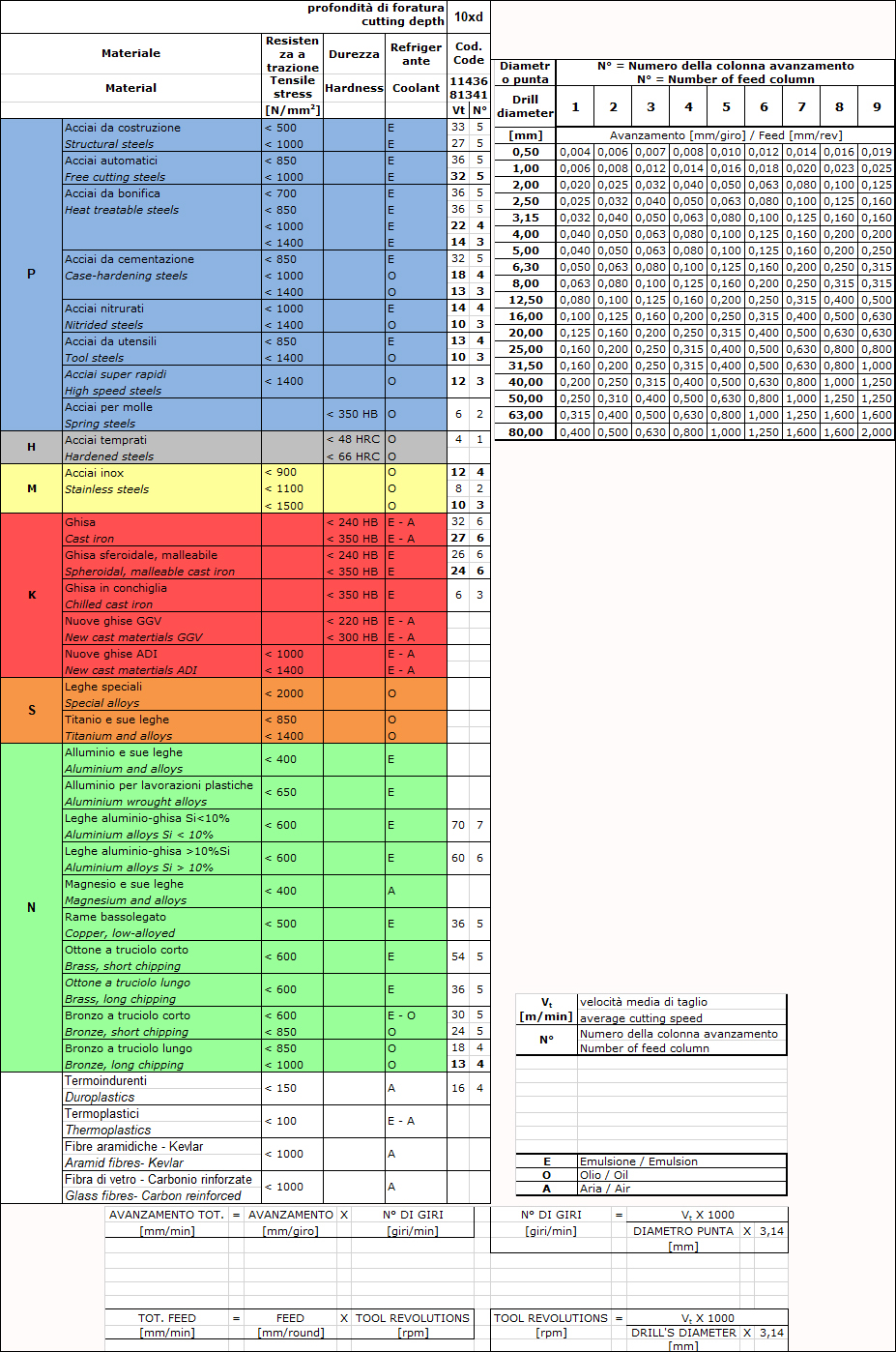

scheda tecnica Punta lunga HSS-Co DIN 340, tipo FN, nitrurata
